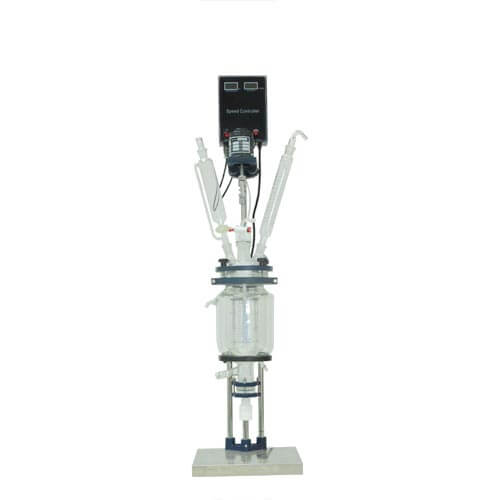

S212-2L Double-Layer Glass Reactor
Description
S212-2L double-layer glass reactor’s reaction flask volume is 2L, interlayer volume is 0.8L, stirring diameter of axle is 8mm, and the power of stirring is 40W.
S212-2L double-layer glass reactor is a wonderful product that has combined advantages of domestic and foreign like products. It adopts double-layer glass design, put reaction solvent in internal layer to do stirring reaction, connect different cold and heat sources(refrigerating fluid, hot water or hot oil) to interlayer to do cyclic heating or cooling reaction. Under set constant temperature condition, you can conduct stirring reaction under normal or negative pressure in airtight glass reactor, as well as conducting backflow and distillation of reaction solution.
Product Details
PTFE inclined discharge valve makes it convenient to recycle solvent.
It adopts high borosilicate glass(GG-17 material), owns excellent chemical and physical properties, transparency bottle makes it easy to observe reaction liquid material.
Set rotary speed by speed governing turn-knob, which is perceptual intuition and convenient.
It made of stainless steel and aluminium alloy, and beauty in appearance and durable in use.
Product Parameters
| Basic Parameter | Type | S212-2L |
| Glass material | GG-17 | |
| Main support | Stainless Steel | |
| Reaction bottle volume | 2L | |
| Interlayer volume | 0.8L | |
| Oil in and out circulation port | Enter from low port, come out from high port |
|
| Number of reactor bottle | 5 | |
| Discharge outlet liftoff height | 30mm | |
| Reactor reaction temperature | -80-250 degree | |
| Vacuum degree | 0.098Mpa | |
| Stirring speed | 0-800rpm | |
| Stirring diameter of axis | 8mm | |
| Stirring power | 40W | |
| Voltage/Frequency(V/Hz) | 220V/50Hz | |
| Boundary dimension (mm*mm*mm) |
350*345*1000 | |
| Baseboard Dimension(mm*mm*mm) | 325*345 | |
| Package Dimension(mm*mm*mm) | 1200*480*400 0.23m³ | |
| Package weight(KG) | 32 | |
| Functional Configurations | Speed adjustment mode | Electric stepless speed regulation |
| Rotate speed display mode | Digital display | |
| Sealing mode | PTFE sealing, ￠50 flange stirring mouth | |
| Condenser | Vertical 40*400mm, 24# standard mouth |
|
| Dropwise adding device | 250ml constant voltage funnel, 24# standard mouth |
|
| Depression device | 24# standard mouth reducing valve | |
| Temperature testing tube | 19# standard mouth | |
| Discharging method | Inclined PTFE discharging valve, ￠60 flange mouth | |
| Vacuum display mode | Vacuum meter | |
| Stirring connecting method | Universal joint connecting | |
| Stirring bar | Anchor type and push type stainless steel bar, covered with PTFE |
|
| Optional Configurations |
Collecting device | Can select backflow bend with collection bottle |
| Anti-Explosion | Anti-explosive frequency changer, anti-explosive electric machine EX40W 0-1400 rotate |
|
| Main frame part | Frame type, spraying plastics or PTFE |
|
| Heat insulation device | Cotton insulation | |
| Reactor temperature control | Can select digital display | |
| Our company’s laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements. |
||
