Desktop high pressure reactor

Contact us for a free quote

Description

Product Description

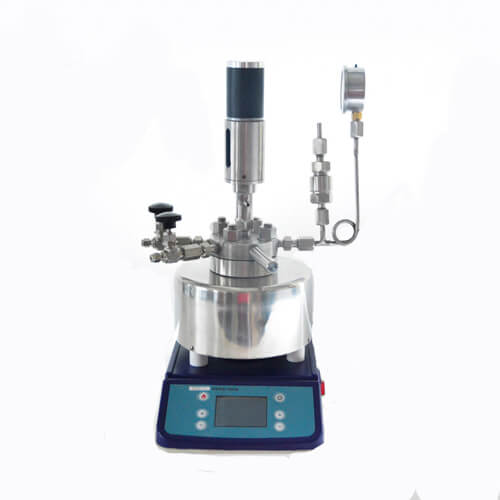

Desktop high pressure reactor is a simple high pressure reactor in accordance with customers’ needs, and it was produced in accordance with the functions of high pressure reactor. The reactor is made of stainless steel material by the means of magnetic stirring. Moreover, it is capable of choosing different volume in accordance with the customers’ requirements.

Product Parameters

ModelTGYF
Volume0.050.10.20.5
Material304/316
Design Pressure22Mpa
Design Temperature350℃
Sealing Methodstatic sealing, arc sealing
Stirring Speed0-2000 rpm
Stirring Formbottom magnetic stirring
Heating Methodelectric heating
Heating Power600w900w1200w1500w
Temperature Control Accuracy±1℃
Speed Controlstepless speed regulation
Temperature Controlintelligent temperature control
Speed Displaydigital display
Temperature Displaydigital display
Power220V/50Hz or 110V/60Hz
Gas Phase Nozzleneedle valve, could be filled with vareous applicable gas
Vent Nzzleneedle valve is available for taking samples
Temperature Measurement NozzleK type thermocouple
Air Inlet Sizeφ4
Air Outlet Sizeφ4
Temperature Measurement Sizeφ4
Pressure Gage Sizeφ4
Connection Joint Sizemetric male thread 14×1.5
[title style=”center” text=”Our Service” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

Pre-Sale Service

  1. Provide 24-hour technical consultation and reply;
  2. Provide professional quotation information;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sale Service

  1. With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport of products are in strictaccordance with the export standard;
  6. Provide transportation schedule information to clients timely.

After-Sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
  7. Provide assistance in solving problems such as equipment damage in the transport.
