Main Technical Parameter
|
Design Pressure |
-0.1-0.3Mpa |
Design Temperature |
144℃ |
|
Working Pressure |
0.245Mpa |
Working Temperature |
105-138 ℃ |
|
Vacuum |
-0.086Mpa |
Temperature Equilibrium |
＜+2.0℃ |
|
Water Pressure |
0.1-0.2Mpa |
Compressed air pressure |
0.4-0.7Mpa |
|
External Steam Pressure |
0.3-0.7Mpa |
Power voltage |
AC 380V 50Hz |
Products Features
- Horizontal square inner chamber + jacket structure, safety, heat preservation, and drying function.
- Disc type embedded gear+electric lock door structure, safety and reliable;
- The door seal is pneumatic, single or double door
- Equipped with standard equipment verification interface
- Pipeline system for the optional design,SU304 pipeline, clamp structure, quick assembly
- Control System:HMI man-machine interface, touch screen+PLC
- F0 Value and temperature time double guarantee sterilization effect, with perfect sterilization records
- With program selection, parameter setting, equipment operation selection, parameter setting,report processing and traceability functions
- Three levels of authority management
- Multiple safety protection
- Sterilization process: fabric, equipment, liquid, BD, pressure testing, custom defined multiple procedures
|
Product Model |
Overall Dimension |
Chamber Dimension |
Steam Consumption |
Water Consumption |
Power |
Net Weight(KG) |
|
WF-150D(S)(M) |
950X1120X1760 |
700X450X480 |
≤14 |
≤190 |
≤2 |
700 |
|
WF-200D(S)(M) |
1175X1120X1760 |
925X450X480 |
≤16 |
≤190 |
≤2 |
830 |
|
WF-250D(S)(M) |
1030X1300X1900 |
780X600X600 |
≤18 |
≤200 |
≤2 |
890 |
|
WF-360D(S)(M) |
1250X1300X1900 |
1000X600X600 |
≤25 |
≤200 |
≤2 |
990 |
|

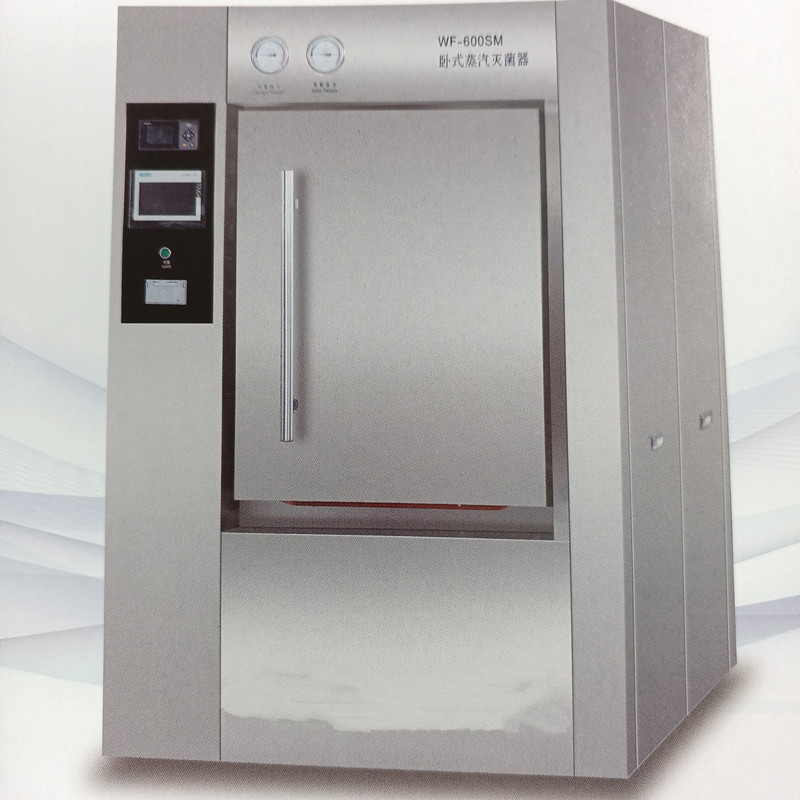

WF-600D(S)(M) |
1440X1310X1900 |
1190X610X910 |
≤30 |
≤210 |
≤2 |
1340 |
|
WF-800D(S)(M) |
1700X1310X1900 |
1450X610X910 |
≤35 |
≤220 |
≤3 |
1530 |
|
WF-1000D(S)(M) |
1500X1440X1950 |
1250X680X1180 |
≤42 |
≤200 |
≤3.5 |
1680 |
|
WF-1200D(S)(M) |
1700X1440X1950 |
1450X680X1180 |
≤50 |
≤200 |
≤4.5 |
1800 |
|
WF-1500D(S)(M) |
2100X1440X1950 |
1820X680X1180 |
≤60 |
≤200 |
≤4.5 |
2050 |
|
Product Model |
Overall Dimension |
Chamber Size |
Steam Consumption |
Water Consumption |
Power |
Net Weight |
|
WY-100D |
1160x650x1680 |
420×750 |
≤ 10 |
≤30 |
≤2 |
350 |
|
WY-150D |
1290x690x1680 |
472×880 |
≤ 12 |
≤30 |
≤2 |
400 |
|
WY-200D |
1560x690x1680 |
472×1150 |
≤ 13 |
≤30 |
≤2 |
450 |
|
WY-300D |
1430x850x1760 |
620×995 |
≤ 18 |
≤40 |
≤2 |
510 |
|
WY-400D |
1755x850x1760 |
620×1320 |
≤ 22 |
≤40 |
≤2 |
650 |
