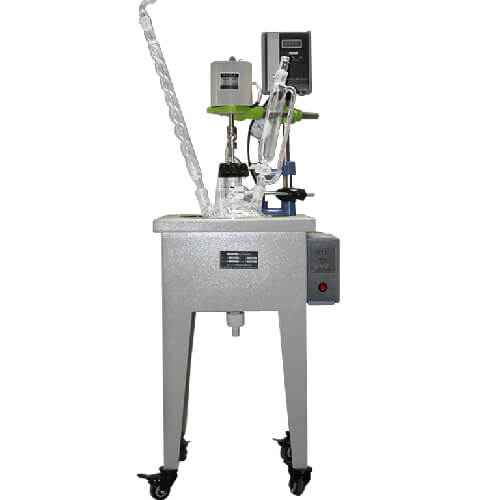

F-3L Single Layer Glass Reactor
F-3L single layer glass reactor is a series product of single layer glass reactor, its reaction bottle volume is 3L, that’s why it is known as F-3L single layer glass reactor, also called: glass vacuum reactor, extractor, multifunctional reactors, it can make various of solvent synthesis reaction under the condition of constant temperature.
Description
Facebook
Youtube
Instagram
Quotation
Technical Parameter
| Basic parameter | Model | Single layer glass reactor |
| Volume of the reactor bottle | 3L | |
| Glass material | GG-17 | |
| Main body | Stainless steel | |
| Number of covered bottle | 5 | |
| Reaction temperature of the reactor | -80-250℃ | |
| Degree of vacuum | 0.098Mpa | |
| Stirring speed | 0-800pm | |
| Stirring shaft diameter | 8mm | |
| Motor Power | 90W | |
| Heating power | 2KW | |
| Voltage/Hertz | 220V/50Hz | |
| Whole size | 430*330*1200mm | |
| Plate size | 410*325mm | |
| Pot gall size | Stainless steel 280*170mm | |
| Packing size | 1000*480*480 | |
| Packing weight | 30kg | |
| Function device | Speed regulation method | Electronic variable speed |
| Rotating speed display mode | Number display | |
| Pot temperature display mode | Number display | |
| Sealing method | PTFE material seal，￠50 Flange stirring port | |
| Condenser | Vertical 60*450mm 24#Standard port | |
| Drop wise | 500ml Constant pressure funnel 29#Standard port | |
| Pressure reduce device | 24# standard port pressure reduce valve | |
| Temperature test tube | 24#Standard port | |
| Collecting device | Two adapter headband with collection bottle | |
| Vacuum display method | Vacuum table | |
| Stirring connection method | Universal joints | |
| Stir bar | Described stainless steel rods, outsourcing PTFE | |
| Optional device | Explosion-proof | Explosion-proof inverter/Explosion proof motors EX60W 0-1400rmp |
| Kettle temperature display | Optional digital display | |
| Discharge device | PTFE discharge valve flange ¢ 60 | |
| Heating device | electric heating jacket heating | |
| Our laboratory equipment can be customized according to customers actual needs. | ||
Transport
Additional information
| Glass material | GG-17 |
|---|---|
| Degree of vacuum | 0.098Mpa |
| Stirring speed | 0-800pm |
