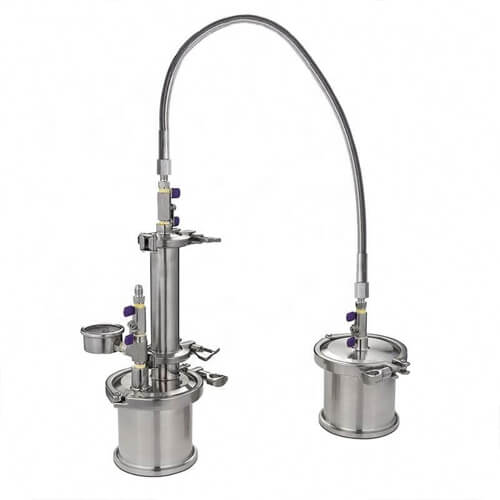

45g Closed Loop Extractor

Contact us for a free quote


45g Closed Loop Extractor Products Description
45g Closed Loop Extractor Products Description

The closed loop extractor, known as well-received cannabis extraction equipment, widely used in chemical, metallurgical, food and other industries. A closed-loop extractor kit mainly consists of three parts: a solvent tank, a material column and a receiving foundation. Some upgraded versions add a dewaxing column as the fourth part, or equip the material column with a dewaxing structure directly.

Working Process

The working process of a closed loop extractor can be described as follows. The materials are put into the material column to get soaked by ethanol or other solvents. In this process, substances get extracted. Then the mixture will be transferred into next column and get separated. The solvents will be transferred into next column and the extract will be saved in the bottom container for users to get. In a closed loop extractor, the solvents can be recycled and used for several times, which is very economical for users and very environmentally friendly for people.

Product Types

There are several types of closed loop extractors.

In terms of ways of solvent injection, closed loop extractors can be classified into the top filled closed loop extractors and the bi-directional closed loop extractors.

In terms of ways of solvent movement, closed loop extractors can be classified into the passive closed loop extractors and the active closed loop extractors.

Product Parameters

Material SS304 or SS316
Capacity 1LB, 2LB, 5LB
Material Column 3”*24” 3”*36” 4”*48”
Gasket Type Fluororubber
System Pressure Rating 150psi
Range of Working Temperature -42℃~72℃
System Ultrahigh Vacuum  10μm Hg

Product Details

The sanitary stainless steel pipe fittings of 3A standard are adopted.

The sanitary stainless steel pipe fittings
Sanitary stainless steel pipe fittings

The high-pressure clamps are adopted to connect all interfaces, which are pressure resistant and easy to clean.

The high-pressure clamps are adopted to connect all interfaces
High-pressure clamps

The borosilicate glass sight is easy to observe the inner condition of the container.

The borosilicate glass sight
Borosilicate glass sight

The high-quality polishing process is used inside and outside the product.

high quality polishing process
High-quality polishing process

The modular design is easy to upgrade.

Modular design

Product Advantages

  1. High production.
  2. More than 99% of the solvent can be recovered.
  3. Independent port for vacuum, injection and recovery.
  4. Remove the pollution in the solvent and oil.
  5. No gas exposed to air.
  6. Environmental protection.
  7. Modular design for easy upgrade.

Pre-Sale Service

  1. Provide 24-hour technical consultation and reply;
  2. Provide professional quotation information;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sale Service

  1. With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport of products are in strictaccordance with the export standard;
  6. Provide transportation schedule information to clients timely.

After-Sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
  7. Provide assistance in solving problems such as equipment damage in the transport.
