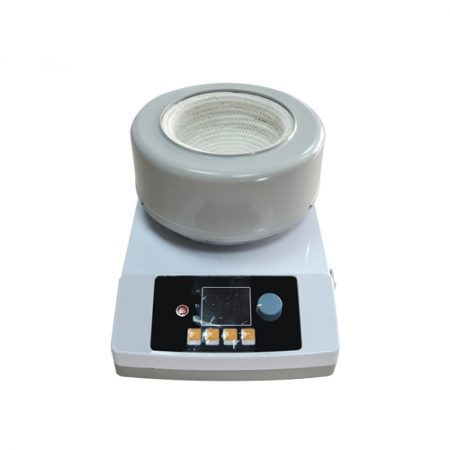

ZNCL-T Single Digital Dispaly Magnetic Heating Mantle

Checking mixing requirements?

Send the material volume, viscosity, speed range and whether heating is needed. We will check the motor, stirrer type and control setup.

Mixing checks

Volume and viscosityTell us the working volume and whether the material is thin, viscous or changes during mixing.
Speed and toolConfirm speed range, impeller or rotor needs and whether the container size is fixed.
Heating and controlsCheck temperature control, voltage, timer, stand and daily cleaning requirements.

Description

[title style=”center” text=”ZNCL-T Single Digital Dispaly Magnetic Heating Mantle” color=”rgba(32, 163, 219, 0.81)”]

Product Description

Single digital dispaly magnetic heating mantle, as the lab instrument to mix liquid, mainly used for stirring or concurrent heating and stirring liquid of low viscosity or solid-liquid mixture.

Product Parameters

Product Name ZNCL-T Intelligent Electric Heating Magnetic Stirrer
Power 220V/50Hz (customized)
Speed Adjustabl Range 50-1800rpm    Stepless Speed Regulation
Motor Power 40W   DC14-24V
Stirring Volume 100ml 250ml 500ml 1000ml 2000ml 3000ml 5000ml 10000ml
Heating Power 130W 216W 230W 530W 650W 730W 1100W 2100W
Temperature Control Accuracy ±1℃
Temperature Control Method Digital display, silicon controlled, measure temperature by interior and external sensor
Heating Temperature Max surface temperature 380℃
Boiling Water 10-25 minutes
Resistance Wire Cr20Ni80
Insulating Layer Alkali-free glass fiber, temperature resistance of 450℃
Insulating Coefficient Relative Humidity ≤35%≥500MΩ
Thermal Insulating Layer Keep warm by environmental protection material of aluminum silicate wool which has been vacuum case-hardened.
Working Time Continuous
Overall Dimension (mm) 260*155 *155 260*155 *155 260*155 *155 325*215 *175 430*270 *305 430*270 *305 500*330 *305 500*330 *305
Package Dimension (mm) 310*205 *205 310*205 *205 310*205 *205 375*265 *225 480*320 *355 480*320 *355 550*380 *355 550*380 *355
Weight (g) 2500g±50g 2500g±50g 2600g±50g 2800g±100g 3000g±100g 3200g±100g 3500g±200g 4500g±300g
Remark We can customize special-shaped heating mantles (10L, 20L, 30L, 50L)

[title style=”center” text=”Quality Certifications” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

certification
certification

[title style=”center” text=”Package & Delivery” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

packing and delivery
packing and delivery

[title style=”center” text=”Our Service” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

Pre-Sale Service

  1. Provide 24-hour technical consultation and reply;
  2. Provide professional quotation information;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sale Service

  1. With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport of products are in strictaccordance with the export standard;
  6. Provide transportation schedule information to clients timely.

After-Sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
  7. Provide assistance in solving problems such as equipment damage in the transport.

[title style=”center” text=”Send Message” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

Additional information

Temp. Control Accuracy

±1℃

Max Temperature

380℃

Volume

50-20000ml
