Vertical Planetary Ball Mill

Contact us for a free quote

Description

Product Description

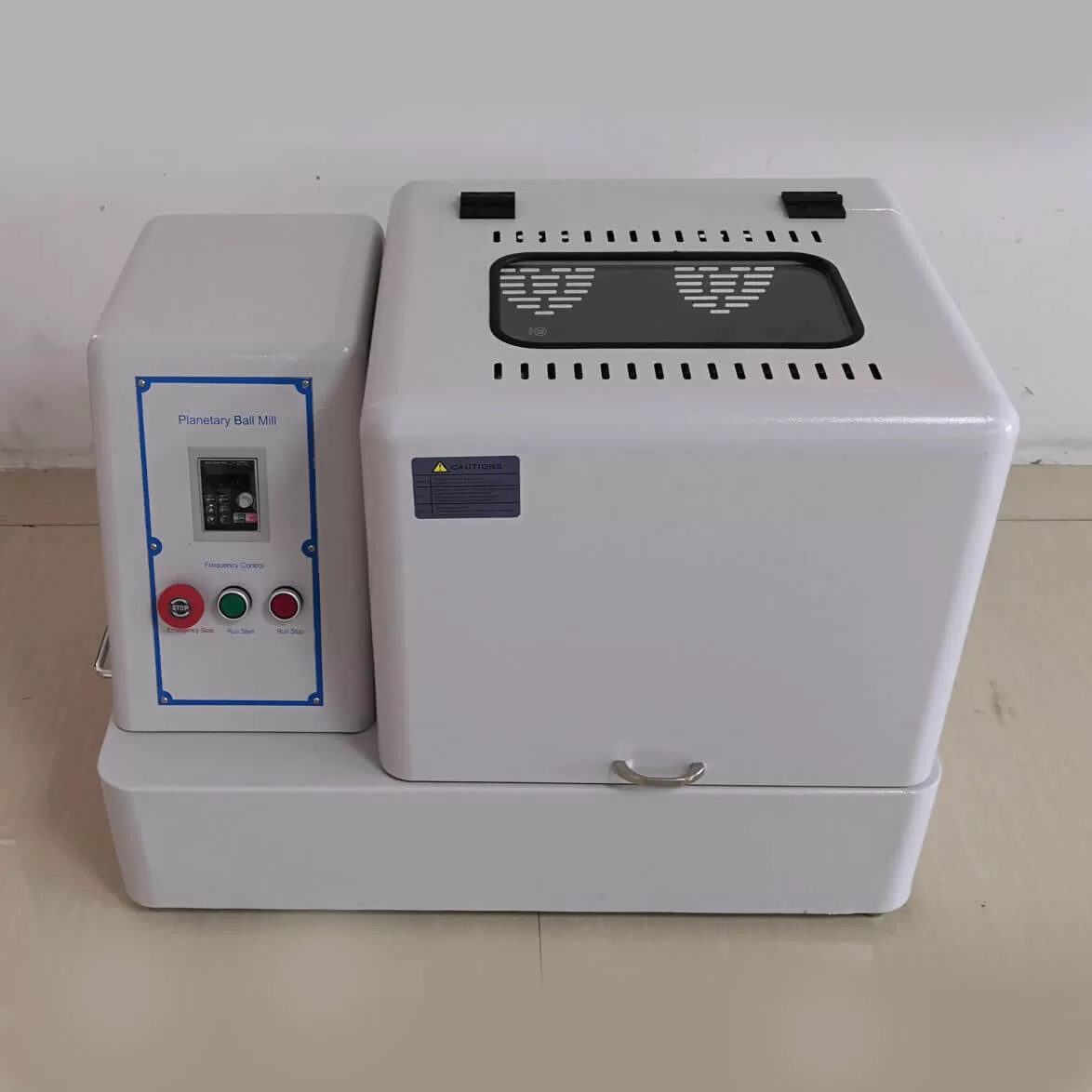

The planetary ball mill is a necessary device used for high-tech materials’ mixing, fine grinding, sample preparation, new product development and small batch production. Featuring small volume, high efficiency and low noise, it is an ideal equipment for R&D institution, colleges and universities, enterprises and laboratories to obtain samples.

Vertical Planetary Ball Mill
Vertical Planetary Ball Mill
planetary ball mill
planetary ball mill

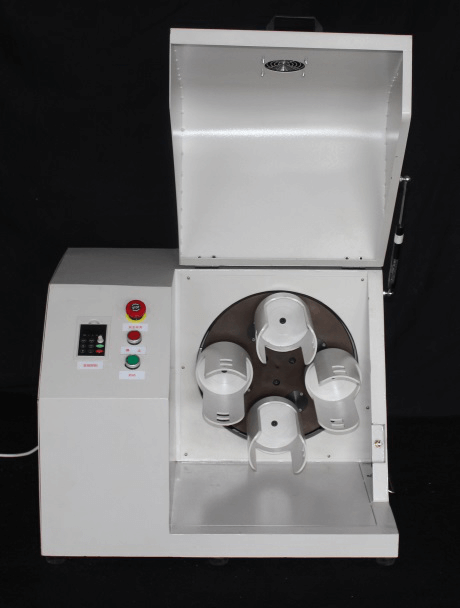

1-1. Control Cabinet   1-2. Control Panel   1-3. Motor   1-4. Rack   1-5. Conveyor Belt

 1-6. Planetary Mechanism   1-7. Mill Tank Seat  1-8. Ball Mill Tank   1-9. Top Tightening Device of Ball Mill Tank

Product Function

In a planetary ball mill, there are four ball mill tanks installed on one turntable. When the turntable rotates, the ball mill tanks revolve around the main axis and at the same time reversely move around their own axes in planetary rotation. The grinding balls and samples inside the tanks impact, shear and rub with each other in high speed movement to achieve the purposes of crushing, grinding, mixing and dispersing materials. Various kinds of solid particles, suspensions and pastes can be ground by the mill with dry or wet method. The minimum granularity of ground product can be as small as 0.1μm.

Product Application

A planetary ball mill is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments.

Examples: production of electronic ceramics, structural ceramics, magnetic materials, lithium cobalt, lithium manganese, catalyst, phosphor, long afterglow powder, rare earth polishing powder, electronic glass powder, fuel cell, ceramic capacitor, zinc oxide varistor, piezoelectric ceramics, nano materials, wafer ceramic capacitor, MLCC, thermistor (PTC and NTC), ZnO varistor, lighting arrester valve slice, strontium titanate ring varistor, ceramic filter, dielectric ceramics, piezoelectric transducers, piezoelectric transformer, chip resistors, thick film circuit, focal potentiometer, alumina ceramic, zirconia ceramic, phosphor, zinc powder oxide, cobalt oxide powder, Ni – zinc ferrite, Mn – zinc ferrite and other products.

Product Advantages

  1. Timing function.
  2. Forward and reversal rotating.
  3. Cover opening shutdown protection.
  4. Using a removable power cord is flexible.
  5. The tank rotates around its own axis as it revolves around the main axis.
  6. The wide sight glass is convenient to observe the operating condition of tanks.
  7. Air switch for overcurrent protection.

Product Parameters

Vertical Planetary Ball Mill

Model Specification Motor Power(KW) Rotation Speed(rpm) Revolution Speed(rpm) Total Timing(min) Timing of Forward and Reversal Rotating(min) Voltage
XQM-0.4L 0.1L*4 0.25 70-670 45-435 1-9999 1-999 220V
XQM-2L 0.5L*4 0.75 70-670 35-335 1-9999 1-999 220V
XQM-4L 1L*4 0.75 70-670 35-335 1-9999 1-999 220V
XQM-6L 1.5L*4 0.75 70-670 35-335 1-9999 1-999 220V
XQM-8L 2L*4 1.5 70-580 35-290 1-9999 1-999 220V
XQM-10L 2.5L*4 1.5 70-580 35-290 1-9999 1-999 220V
XQM-12L 3L*4 1.5 70-580 35-290 1-9999 1-999 220V
XQM-16L 4L*4 3 60-510 30-255 1-9999 1-999 380V
XQM-20L 5L*4 4 50-430 25-215 1-9999 1-999 380V
XQM-40L 10L*4 5.5 40-390 20-195 1-9999 1-999 380V
XQM-60L 15L*4 7.5 40-260 27-174 1-9999 1-999 380V
XQM-100L 25L*4 11 40-240 27-160 1-9999 1-999 380V

Product Details

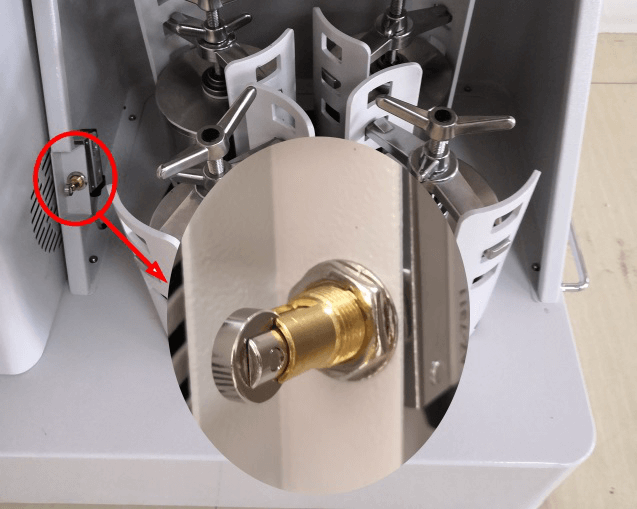

  • Cover opening shutdown protection.

    Cover opening shutdown protection
    Cover opening shutdown protection

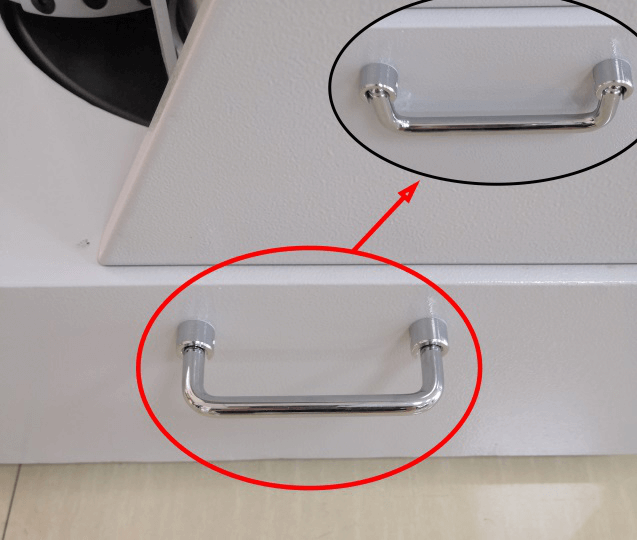

  • The stainless steel handles can be folded, saving space.

    stainless steel handle
    stainless steel handle

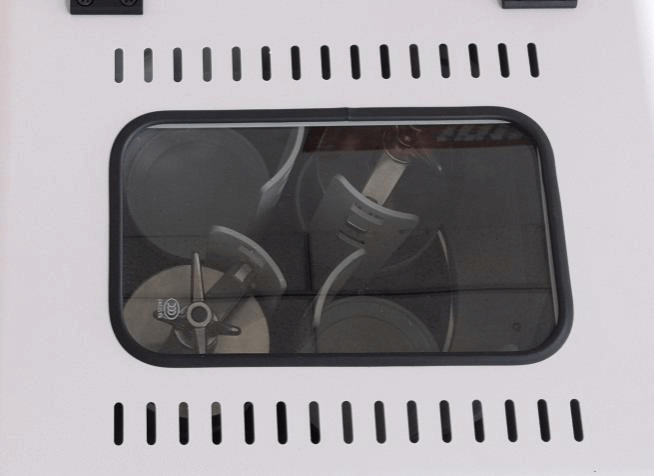

  • The upper cover with a wide sight glass is clear to observe the working condition of ball mill tanks.

    sight glass
    sight glass

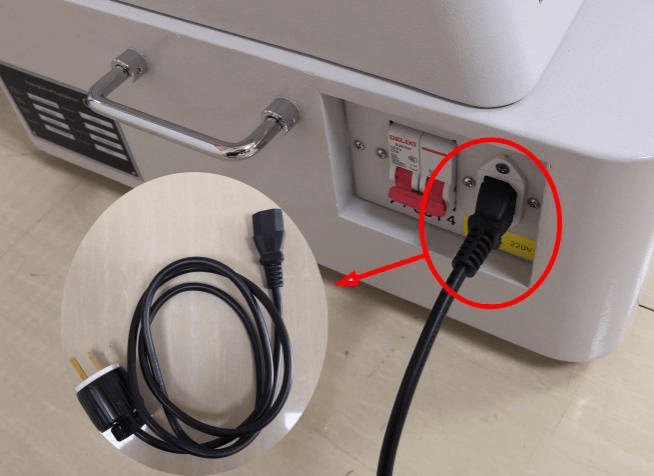

  • Using a removable power cord is flexible.

    power cord
    power cord

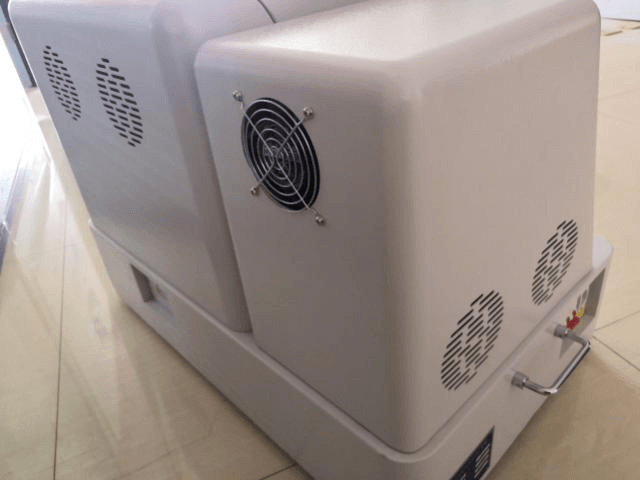

  • The shell is equipped with several heat dissipation holes and a cooling fan to improve the equipment performance.

    shell
    shell

Accessory Product

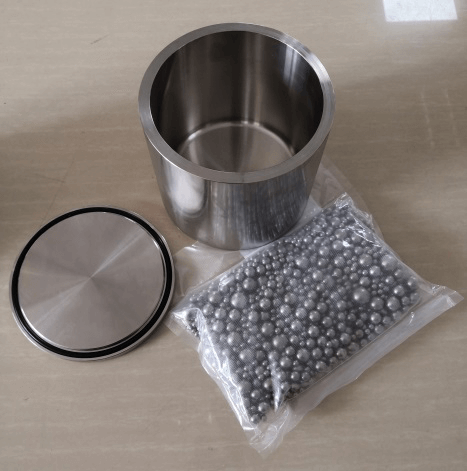

  • Ball mill tank and grinding ball

    Ball mill tank and grinding ball
    Ball mill tank and grinding ball

FAQ

  1. How long is the delivery period of one unit?

A: Normally it is 7 days.

  1. Is there any requirement for the granularity of materials loaded in the ball mill tank?

A: Friable material ≤10mm, other material ≤3mm.

  1. What is the single loading capacity of a ball mill tank?

A: The single loading capacity should be no less than 1/3 of the ball mill tank’s capacity, and no more than 2/3 of the ball mill tank’s capacity.

  1. What are the materials of ball mill tanks and grinding balls?

A: Stainless steel, agate, zirconia, corundum, alumina, nylon and so on.

  1. Is the effect better with a higher rotating speed?

A: The higher rotating speed doesn’t necessarily mean better grinding effect. Too high speed will accelerate the wear of mechanical parts of the equipment and shorten the service life of the equipment. It is suggested that users reduce the rotating speed as far as possible according to the actual needs of materials.

Relevant Recommendation

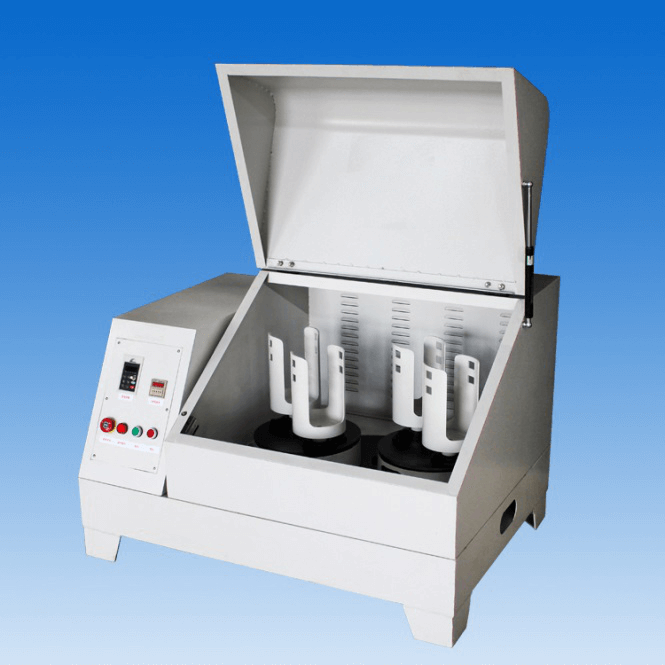

  • Horizontal Planetary Ball Mill: It is suitable for materials that is easy to sink and harden.

    Horizontal Planetary Ball Mill
    Horizontal Planetary Ball Mill

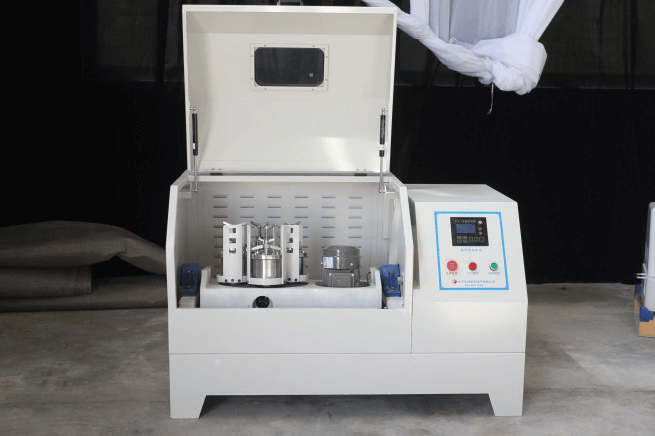

  • All-Directional Planetary Ball Mill: It is suitable for materials that is easy to sink and harden.

    All-Directional Planetary Ball Mill
    All-Directional Planetary Ball Mill
  • Dual Planetary Ball Mill: It is suitable for materials that require a ultra-high rotating speed and ultra-fine grinding effect.

    Dual Planetary Ball Mill
    Dual Planetary Ball Mill
  • Planetary Ball Mill with Cooling Device: It is suitable for materials that need to cool down during the grinding process.
  • Planetary Ball Mill with Heating Device: It is suitable for materials that need to be ground under high temperature.
