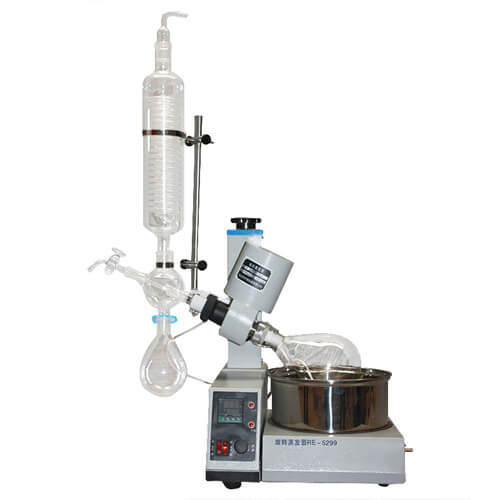

RE-5299 1L Rotary Evaporator

Contact us for a free quote


[title style=”center” text=”RE-5299 1L Rotary Evaporator” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

Product Description

RE-5299 rotary evaporator’s maximum capacity is 2000ml, rotate speed is 5-120r.p.m, and the motor power is 25W. RE-5299 rotary evaporator uses micro-motor to change speed, its main engine can go up and down by manual or electric means. Buried type sensor, digital display temperature and automatic controlled temperature makes experiment more accuracy and convenient. Rotary evaporator can rotate to form thin film and efficient evaporation under thermostat heating and negative pressure, then cooling recycle the solvent. It is especially suitable for heat reactive material’s crystallization, separation and solvent recovery.

Product Details

The main unit can be tilted arbitrarily within the range of 0-15°, which can better match the water bath, and the rotating bottle can adapt to a wider range.
Manual tilt
Manual tilt
The digital display of rotor speed and the temperature of the heating pot makes the parameters information clear at a glance.The main engine can be raised or lowered by manual.
Intelligent digital display lifting water and oil universal bath, stainless steel one-time forming liner without welding, annular heating tube heating evenly, heating rate is high.
Water Bath
Water Bath
The double backflow vertical efficient snakelike condenser makes it fast to condensate solvent and recovery rate approach to 100%.
Condenser Tube
Condenser Tube

Product Parameters

Basic Parameter Type RE-5299
Glass Material GG-17
Support Material Antisepsis Plastic Spraying
Shell Material Antisepsis Plastic Spraying 265*310*80mm
Inner Container Material Stainless Steel 250*140mm
Volume of Rotary Bottle 1L 24# Standard Aperture
Volume of Recycling Bottle 0.5L 24# Standard Aperture
Vacuum Degree 0.098Mpa
Rotating Power 30W Brushless Electric Machine
Rotating Speed 0-120rpm
Heating Power 1.5KW
Temperature Control Range of Bath Kettle 0-99℃
Temperature Accuracy ±1℃
Voltage/Frequency (V/Hz) 220V/50Hz
Up and Down Distance 120mm
Shape Size(mm*mm*mm) 770*440*1005
Package Size(mm*mm*mm) 590*460*440 0.12m³
Package Weight (KG) 21
Function Allocation Speed Adjustment Mode Electrodeless Speed Regulation
Temperature Display Mode Digital Display CU50 Type Sensor
Temperature Control Mode Smart Temperature Control
Sealing Mode Telfon Sealing
Condenser Vertical Condenser 85*430mm
Up and Down Mode Automatic Up and Down of Main Engine
Continuous Charging 19# Standard Aperture Feeding Valve
Optional Equipping Anti-splash Device Equipping Transparent Cover of Bath Kettle
Temperature Control Range of Bath Kettle 0-400℃

Packing List

Machine Part Glass Part
Head with the motor 1 set Rotary Bottle 1 pc
Host 1 unit Recycling bottle 1 pc
Control box 1 pc Condenser 1 pc
Bath pot 1 unit 19# feeding valve 1 pc
Recycling bottle clamp 1 pc Adapter 1 pc
PTFE Tube 1 pc Glass Shaft 1 pc
Heating wire 1 pc
Fasten Screw 1 pc
PTFE Flask remover 1 pc
Nut with pad 2 sets
Spare Parts
Operation Manual 1 pc 10A fuse 2 pcs
Warranty Card 1 pc Sealing gasket 1 pc
Quality Certificate 1 pc Packing List 1 pc
