Description

Product Description

As a common chemistry lab apparatus, RE-5000B 5L rotary evaporator is on top of the lab equipment list, which is used to continuously distill a large number of volatile solvents under negative pressure. In particular, the distillation of concentrated liquid and chromatography collection liquid can be separated and purified.RE-5000B rotary evaporator mainly used for continuous distillation of a large amount of volatile solvent under negative pressure. Especially for the concentration of extract liquor and distillation of receive liquid when chromatograph,it can isolate and purify reaction product. In reduced pressure condition, when solvent distillation, distillation flask in continuous rotation, the distillation flask is a pyriform or round-bottom flask who is connected to vacuum pump by a snakelike condenser pipe, the other open mouth of condenser pipe is connected to receiving flask to receive evaporated organic solvent.There is a three-way valve between condenser pipe and vacuum pump, when system connect to air, take down distillation flask and receiving flask to transfer solvent. Please reduce pressure first before rotate distil lation flask; and please power off first before connect to air, to prevent the rotating distillation flask from falling off. Thermostatic water bath is the heat source for distillation. RE-5000B rotary evaporator mainly used in medicine, chemical engineering, biopharmacy industries for the concentration, crystallization, drying, separation and solvent recovery, especially suitable for concentrate and purify high temperature easily decomposed material.

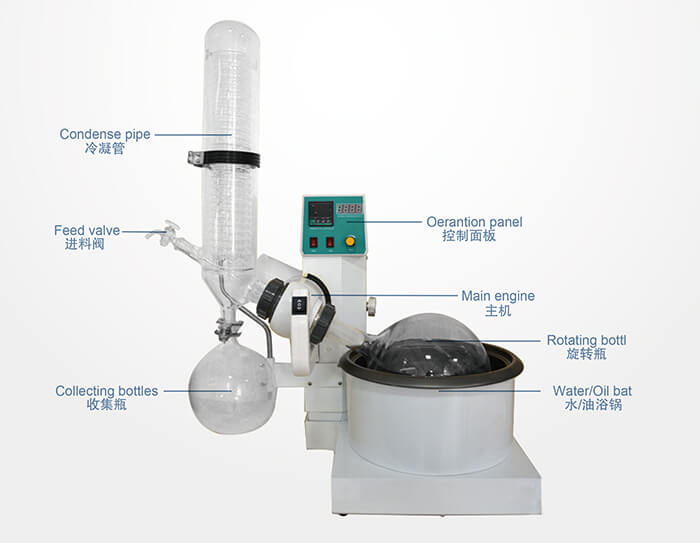

RE-5000B 5L Rotary Evaporator

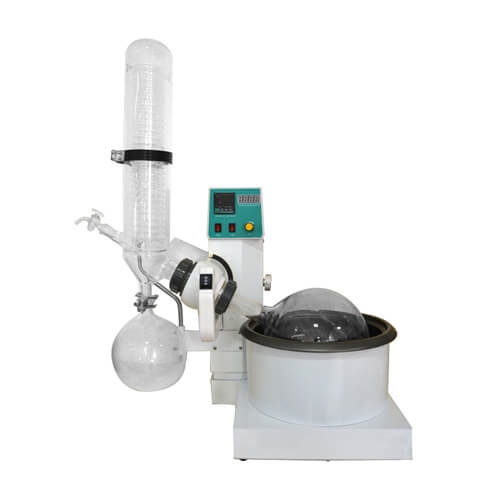

RE-5000B 5L Rotary Evaporator

Product Details

Water bath kettle uses Teflon material. The full sealed heater possesses excellent heat protection and have energy-saving effect.
Water Bath
Water Bath
High efficient double condenser to ensure high recovery rate.
Condenser Tube
Condenser Tube
Teflon and fluororubber are double sealed to maintain high vacuum.
Double seal
Double seal
Digital display of both rotary speed and temperature is clear and convenient. Electronic stepless speed regulation operates stably; Humanized operation system, and seesaw type button is easy to handle.
Monitor
Monitor

Product Parameters

Basic ParameterModelRE-5000B
Glass MaterialGG-17
Support MaterialAluminium Alloy
Inner Container MaterialAluminium Alloy+Teflon recombination pot, whole sealing heating   280*170mm 10L
Rotary Bottle Volume5L  50# flange port
Receiving Flask Volume3L  35# ball milling port
Rotary Power40W
Rotary Speed0-180rpm
Heating Power1.5KW
Bath Kettle Temp. Control Range0-99℃
Temp. Control Accuracy±1℃
Lifting Power20W
Lifting Stroke120mm
Voltage/Frequency (V/Hz)220V/50Hz
Overall Dimension (mm*mm*mm)700*410*880
Package Dimension (mm*mm*mm)640*540*690   wooden case
Package Weight (KG)42.5
Functional ConfigurationRotary Speed Display ModeDigital Display
Temperature Display ModePT100 Sensor Digital Display
Temperature Control ModeIntelligent Temperature Contro
Sealing ModeBothway sealing by Teflon + Fluorine Rubber
Lifting ModeAutomatic lifting of main engine
CondenserVertical type condenser 100*590mm
Continuous Charging19# charging valve

Packing List

Nose1 setRotary bottle1 unit
Floor shelf1 setRecycling bottle1 unit
Aluminum Backing Ring of Assistant Condenser1 unitMain condenser1 unit
Vacuum meter1 pcAir conduction bottle/td>1 unit
Rotary nut1 setFeeding Valve1 unit
Assistant condenser nut1 set¢60 flange tap1 unit
PTFE sealed joint sleeve1 set24# vent valve2 units
PTFE feeding valve with flange plate1 set19# vent valve1 unit
Check valve1 setRotary shaft1 unit
Aluminum Backing Ring of recycling bottle1 unitAssistant Condenser1 unit
¢60F4 pad3 units
¢80F4 pad1 unit br>
Big black hat3.5 sets
Transducer1 set
Water bath kettle1 unit
Condenser pipe clamp1 unit
