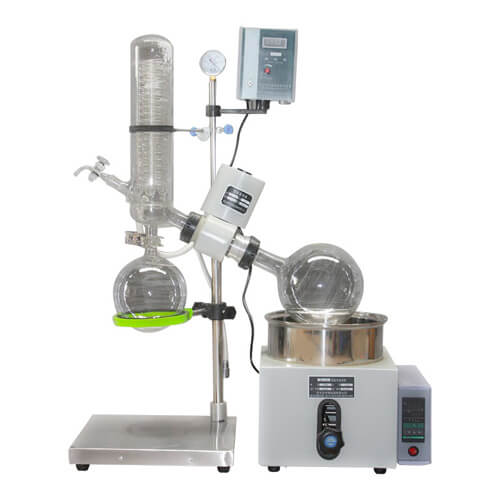

RE-301 3L Rotary Evaporator

Description

Facebook


Youtube


Instagram


Quotation

[title style=”center” text=”Product Description” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]
The RE-301 Rotary Evaporator’s maximum capacity is 3000ml, and the rotating speed is 10-120r.p.m, and the motor power is 40W. The RE-301 Rotary Evaporator is the basis of Lanphan’s existing rotary evaporators. It has a manual lifting handle, a self-developed machinery and a well designed glass component. The location of the glass component can be accurately set. The digital display of the rotating speed and the heating kettle’s temperature can help optimize and control all distillation processes. The new type of fixing mechanism greatly simplifies the operation process of changing the evaporating flask.
The rotary evaporator, also known as rotavap or rotovap, is a common lab instrument used in chemical laboratory. It’s mainly adopted to distill a large amount of volatile solvents continuously under the negative pressure. It is capable of separating and purifying reaction products especially for the concentration of liquid extract and distillation of receiving fluid during the chromatographic separation. As the evaporator is vacuumized, the boiling point of the solvent to be distilled decreases. In general, the component distilled from the sample is the target component in the chemical research, such as extracting some natural component from organic synthesis sample. Generally, the rotary evaporator is used to separate components with low boiling points, such as ethane and ehtyl acetate, which are liquids at room temperature and normal pressure. Furthermore, some component in the sample can be removed through standard operation.

Product Parameters

Basic Parameters	Type	RE-301
	Glass Material	GG-17
	Support Material	Stainless Steel
	Shell Material	Antisepsis Plastic Spraying 290*296*240mm
	Inner Container Material	Stainless Steel 255*170mm
	Baseboard Size	350*330mm
	Volume of Rotary Bottle	3L ¢50 flange aperture
	Volume of Recycling Bottle	2L 35# ground aperture
	Vacuum Degree	0.098Mpa
	Rotating Power	40W
	Rotating Speed	0-120rpm
	Heating Power	2KW
	Temperature Control Range of Bath Kettle	400℃
	Temperature Accuracy	±1℃
	Voltage/Frequency (V/Hz)	220V/50Hz
	Up and Down Distance	120mm
	Shape Size(mm*mm*mm)	700*440*885
	Package Size(mm*mm*mm)	1000*460*460 0.12 m³
	Package Weight (KG)	38
Function Allocation	Speed Adjustment Mode	Electrodeless Speed Regulation
	Rotate Speed Display Mode	Digital Display
	Temperature Display Mode	Digital Display K Type Sensor
	Temperature Control Mode	Smart Temperature Control
	Sealing Mode	PTFE Sealing
	Condenser	Vertical Condenser 100*510mm 29#Standard Aperture
	Up and Down Mode	Manual Up and Down of Bath Kettle
	Continuous Charging	19#Standard Aperture Feeding Valve
	Vacuum Display Mode	Vacuum Meter
Optional Equipping	Anti-splash Device	Equipping Transparent Cover of Bath Kettle
	Anti-explosion	Anti-explosion Frequency Changer, Anti-explosion Dynamo EX40W
	Frame Part	Plastic Spraying or PTFE Spraying
Our company’s laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

Product Parts

Product Details

With a wide temperature control range between 0~399℃, the bath kettle can be used as both water and oil bath. The temperature fluctuates by only 0.1℃, which makes the evaporation more stable. It’s not easy to have the existence of material clashing, and it’s safe without spark control.

Silence design can optimize the experimental environment.

The digital display of both rotating speed and heating temperature makes it easy to observe every parameter.

Vertical condenser pipe has strong maneuverability, which can be equipped with a cold trap and do evaporation and collection at low boiling point.

Packing List

Host	1	Rotary Bottle	1
Electric Cabinet	1	Recycling Bottle	1
Special Sealing Ring	1	Condenser Pipe	1
Sealing Gasket	1	Suction Pipe	1
Bottle Clamp	2	Charge Pipe	1
Protective Pipe 3A	1	Protective Pipe	1
Thermostat Water Bath Kettle	1	Special Components (additional Purchase)
