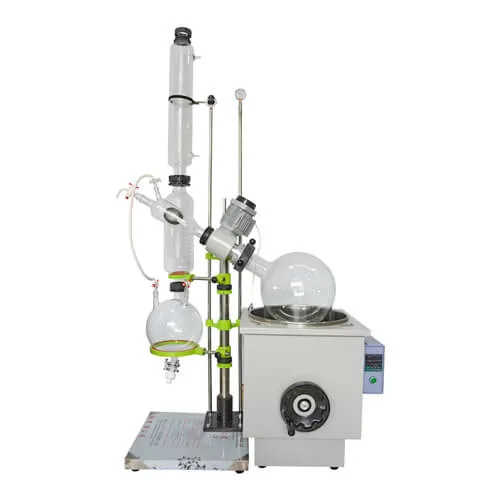

RE-3002 Rotary Evaporator Distillation

Contact us for a free quote

Description

Product Description

RE-3002 rotary evaporator’s rotary bottle maximum capacity is 30L, receiving bottle’s maximum capacity is 20L, rotate speed is 0-90r.p.m, motor power is 250W. RE-3002 rotary evaporator(evaporating bottle volume>10L) is equipped with double condenser(main and vice condenser), which has better condensation effect and higher recovery rate. Because this rotary evaporator works under vacuum condition, and contact segment all adopt high temperature resistance material-high borosilicate glass and PTFE material. It is especially suitable for heat reactive material and material which is corrosive to stainless steel’s concentration, crystallization, separation and solvent recovery.
RE-3002 Rotary Evaporator Distillation
RE-3002 Rotary Evaporator Distillation

Product Parts

Intelligent digital display lifting water and oil universal bath, stainless steel one-time forming liner without welding, annular heating tube heating evenly, heating rate is high.
Water Bath
Water Bath
Borosilicate glass one – time forming high – efficiency serpentine condensing tube, and has good condensing effect and high recovery.
Condenser Tube
Condenser Tube
High quality stainless steel prow, frequency control.
Motor
Motor
Full PTFE discharge valve, no material completely free of pollution.
Flange connection
Flange connection

Product Parameters

Basic Parameter Type RE-3002
Glass Material GG-17
Support Material stainless steel
Shell Material Antisepsis Plastic Spraying 710*620*700 mm
Inner Container Material stainless steel 500*280 mm
Baseboard Size 800*574 mm
Volume of Rotary Bottle 30L ¢125 flange aperture
Volume of Recycling Bottle 20L ¢60 flange aperture
Vacuum Degree 0.098Mpa
Rotating Power 180W
Rotating Speed 0-110rpm
Heating Power 8KW
Temperature Control Range of Bath Kettle 400℃
Temperature Accuracy ±1℃
Voltage/Frequency (V/Hz) 220V/50Hz
Up and Down Distance 180mm
Shape Size(mm*mm*mm) 1520*620*2470 mm
Package Weight (KG) 170
Function Allocation Speed Adjustment Mode Electrodeless Speed Regulation
Rotating Speed Display Mode Digital Display
Temperature Display Mode Digital Display K Type Sensor
Temperature Control Mode Smart Temperature Control
Sealing Mode PTFE Sealing
Condenser Vertical efficient condenser, main condenser 160*840, assistant condenser 160*530
Up and Down Mode Manual Up and Down of Bath Kettle
Continuous Charging 40# Standard Aperture Feeding Valve
Vacuum Display Mode Vacuum Meter
Continuous Collecting Check valve control
Charging Mode PTFE Charging valve, ¢60 flange aperture
Optional Equipping Up and Down Mode Automatic Up and Down
Collecting Device Double Recycling bottle
Anti-explosion Anti-explosion Frequency Changer, Anti-explosion Dynamo EX120W
Frame Part Plastic Spraying or PTFE Spraying
Bath Kettle Material whole 304 stainless steel
Our company’s laboratory glass and laboratory instruments are independent research and development, which are available for custom-made according to client requirements.

Packing List

Machine Part Glass Part
Nose 1 set Rotary bottle 1 unit
Floor shelf 1 set Recycling bottle 1 unit
Aluminum Backing Ring of Assistant Condenser 1 unit Main condenser 1 unit
Vacuum meter 1 pc Air conduction bottle 1 unit
Rotary nut 1 set Feeding Valve 1 unit
Assistant condenser nut 1 set ¢60 flange tap 1 unit
PTFE sealed joint sleeve 1 set 24# vent valve 2 units
PTFE feeding valve with flange plate 1 set 19# vent valve 1 unit
Check valve 1 set Rotary shaft 1 unit
Aluminum Backing Ring of recycling bottle 1 unit Assistant Condenser 1 unit
¢60F4 pad 3 units
¢80F4 pad 1 unit
Big black hat 3.5 sets
Transducer 1 set
Water bath kettle 1 unit
Condenser pipe clamp 1 unit
The final interpretation of this operation manual is reserved by our company. If any change in product, please be subject to the real product. The operation manual will not be changed.
