RE-100L Rotary Evaporator

Contact us for a free quote


Product Description

RE-100L rotary evaporator is an exclusive research and developed large-size rotary evaporator of our company, designed for the purpose of mass production need. It is a pioneer of China’s large-size rotary evaporator, and filled up the blank of 100L rotary evaporator in China. RE-100L’s main energy is equipped with universal wheel, which makes it movable, bath kettle can automatic up and down, speed regulation and temperature control center on main engine table, greatly convenient to handle. The brushless electric machine makes it safe and low noise. The equipped double condenser (Because this rotary evaporator works under vacuum condition, and contact segment all adopt high temperature resistance material-high borosilicate glass and PTFE material, it is especially suitable for heat reactive material and material which is corrosive to stainless steel’s concentration, crystallization, separation and solvent recovery.ain and vice condenser) has better condensation effect and higher recovery rate.The maximum capacity of the rotating lab flask of scientific instruments RE-100L rotary evaporator is 100L, the maximum capacity of the receiving lab flask is 50L, the rotating speed is 0-90r.p.m., and the motor power is 300W.

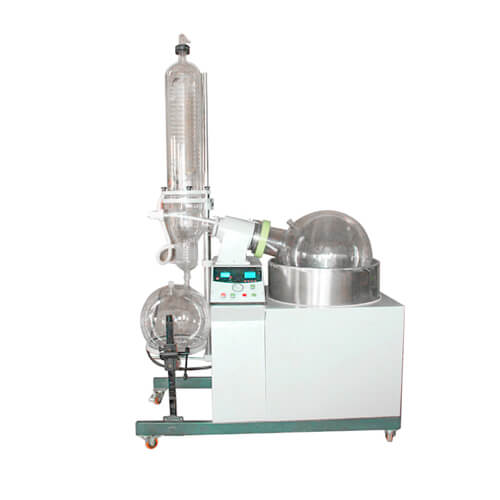

RE-100L Rotary Evaporator
RE-100L Rotary Evaporator

Product Parts

Flange connection make it easy to dismount with high fastening strength.
Flange connection
Flange connection
The motor possesses silence design and optimal experiment environment.
Heating kettle is applicable for both water and oil, digital thermostat control and manual up and down, closed resistance wire heater, temperature control by K type transducer.
Water Bath
Water Bath
Adopt main and vice efficient condenser,there has automatic switching device between vice condenser and receiving bottle.
Condenser Tube
Condenser Tube

Product Parameters

Basic ParameterTypeRE-100L
Glass MaterialGG-17
Support Materialstainless steel
Shell MaterialAntisepsis Plastic Spraying 820*8240mm
Inner Container Materialstainless steel 795*330mm
Baseboard Size1600*830mm
Volume of Rotary Lab Flask100L ¢180 flange aperture
Volume of Recycling Lab Flask50L ¢40 sphere aperture
Vacuum Degree0.098Mpa
Rotating Power300W 220V/50Hz
Rotating Speed0-110rpm
Heating Power12KW 380V/50Hz
Temperature Control Range of Bath Kettle400℃
Temperature Accuracy±1℃
Voltage/Frequency (V/Hz)220V/50Hz
Up and Down Distance180mm
Shape Size(mm*mm*mm)1700*850*2600 mm
Package Weight (KG)400
Function AllocationSpeed Adjustment ModeElectrodeless Speed Regulation
Rotate Speed Display ModeLED Display
Temperature Display ModeDigital Display K Type Sensor
Temperature Control ModeSmart Temperature Control
Sealing ModePTFE Sealing
CondenserVertical efficient three reflux condenser, main condenser 230*950, assistant condenser 230*530
Up and Down Mode

Main Engine Automatic Lifting

Continuous Charging29# Standard Aperture Feeding Valve
Vacuum Display ModeVacuum Meter
Continuous CollectingCheck valve control

Packing List

Machine PartGlass Part
Nose1 setRotary bottle1 unit
Floor shelf1 setRecycling bottle1 unit
Aluminum Backing Ring of Assistant Condenser1 unitMain rotavapor condenser1 unit
Vacuum meter1 pcAir conduction bottle1 unit
Rotary nut1 setFeeding Valve1 unit
Assistant condenser nut1 set¢60 flange tap1 unit
PTFE sealed joint sleeve1 set24# vent valve2 units
 PTFE feeding valve with flange plate1 set19# vent valve1 unit
Check valve1 setRotary shaft1 unit
Aluminum Backing Ring of recycling bottle1 unitAssistant Condenser1 unit
¢60F4 pad3 units
¢80F4 pad1 unit
Big black hat3.5 sets
Transducer1 set
Water bath kettle1 unit
Condenser pipe clamp1 unit
The final interpretation of this operation manual is reserved by our company. If any change in product, please be subject to the real product. The operation manual will not be changed.
