The ultrasonic cleaner (USC) functions directly or indirectly on the liquid and dirt by making use of the cavitation, acceleration and direct inflow action of ultrasonic in the liquid, making the dirt layer disperse, emulsify and strip to achieve the purpose of cleaning. The cavitation and direct inflow are more widely used in current ultrasonic cleaners.
Object cleaning, degassing, disinfection, emulsification, mixing, replacement, extraction, etc.
- Applicable Feilds
Electronic stores, industrial and mining enterprises, laboratories, hospitals, watch shops, optical shops, jewelry stores, mobile phone repair shops, homes, etc.
- Cleaning Products
Electronic products, lab supplies, office supplies, household supplies, motherboard and accessories of computers, glassware, circuit boards, automotive accessories, hardware accessories, medical equipment, dentures and dental equipment, watches, glasses, jewelry, golf, razors, coins, badges, cutlery, bottles, fruits, etc.
|Ultrosonic Frequency (KHz)||40|
|Ultrasonic Power (W)||240||360||480||600||432-1080||576-1440|
|Vibrator Number (PCS)||4||6||8||10||18||24|
|Ultrasonic Timing (min)||1月30日|
|Heating Temperature (℃)||Room Temperature~80℃|
|Heating Power (W)||450||450||600||600||1500||3000|
|Material||304 Stainless Steel|
|Internal Tank Dimension (mm)||300*240*150||330*300*150||500*300*150||500*300*200||500*350*350||550*400*400|
|Overall Dimension (mm)||325*265*280||360*325*285||530*325*285||530*325*325||680*530*730||730*580*700|
|Power/Voltage (V/Hz)||110V/220V, 50Hz/60Hz||220V, 50Hz/60Hz|
|Package Dimension (mm)||435*360*350||460*410*340||635*405*340||635*405*390||780*610*810||880*660*930|
|Package Weight (kg)||8.5||10.5||13.5||16||76||85|
|Note||Other requirements can be customized, such as other dimensions, 316 stainless steel and frequencies of 20, 25, 28, 80, 128, 168, 180 and 200KHz.|

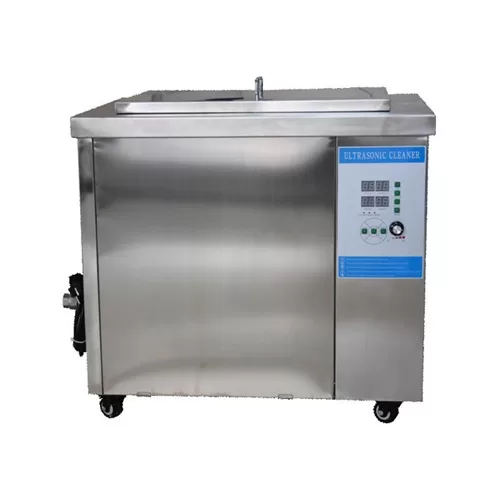

1 The whole machine is made of 301 stainless steel, with an elegant appearance and strong corrosion resistance.
2 It’s convenient to drain off cleaning liquid with a liquid outlet.
3 The equipment is equipped with the heating function, with a better decontamination ability and higher efficiency.
4 The bottom of industrial equipment is added casters, which is convenient to move.
1 Digital touch: Touch the key lightly for operation, with digital display of time and temperature.
2 Adjustable temperature: It can be adjusted from the room temperature to 80℃.
3 Adjustable ultrasonic power: It can be adjusted in the range of 40%-100% of power.
4 Adjustable time: It can be adjusted from 0 to 30 minutes, which is used to control the working time of ultrasonic.
5 Stainless steel basket: It is made of 304 stainless steel, with meshes of 10mm and reinforced steel bars.
6 High-quality casters: It adopts the design of moveable stopping casters, convenient for machines to move and stop.
7 Industrial transducer: It adopts industrial shock heads, with a strong power and good effect. It can work 24 hours.
8 High efficient heat dissipation: It is equipped with a cooling fan.
9 The common tap water, alcohol and solvents can be used as cleaning agents.
- Provide 24-hour technical consultation and reply;
- Provide professional quotation information;
- Provide detailed product performance specification;
- According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
- Provide other corollary equipment according to client requirements.
- With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
- Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
- Provide product’s inspection record of key junctures to customers;
- Provide production schedule photos to customers at regular intervals;
- Package and transport of products are in strictaccordance with the export standard;
- Provide transportation schedule information to clients timely.
- Provide targeted installation video;
- Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
- When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
- During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
- If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
- Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
- Provide assistance in solving problems such as equipment damage in the transport.
