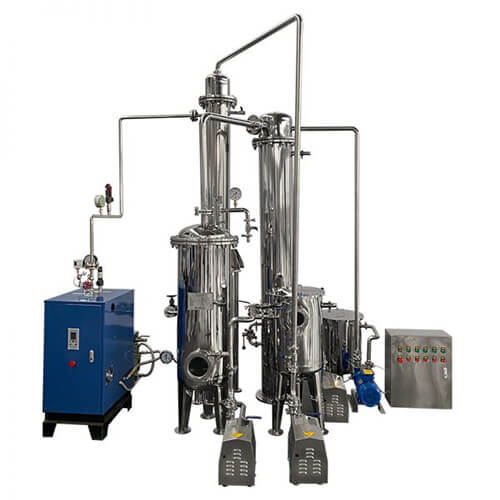

50L Single-Effect Falling Film Evaporator

Contact us for a free quote


A 50L single-effect falling film evaporator can be used to evaporate extract liquid under reduced pressure or vacuum condition so that ethanol and liquid material can be separated, condensed and recycled. The single-effect falling film evaporator used for evaporating ethanol solution is different from the one used for evaporating general aqueous solution. The ethanol has a relatively low boiling point, which is volatile. It’s easy to evaporate ethanol solution under reduced pressure or vacuum condition. So it’s relatively difficult to condense and recycle ethanol steam with a smaller evaporation area. Thus the heat exchange area of the condenser is larger. To obtain a better cooling effect, the two-stage or several-stage method is frequently used for cooling and recycling, which also varies from the evaporation of general aqueous solution.

Working Principle

The liquid material is distributed evenly into each falling film tube by distributors and flows downward along the tube wall in the form of liquid film. The liquid material is evaporated during the process of flowing downward under actions of gravity and secondary steam flow. The liquid material and secondary steam are separated basically after reaching the lower part of falling film tubes and separated completely after reaching the separation chamber.​

Structure Diagram

50L Single-Effect Falling Film Evaporator Process Structure Diagram
Process Structure Diagram of 50L Single-Effect Falling Film Evaporator

F01——Steam Generator                                           S01——Evaporation and Separation Chamber

E01——Tubular Heater                                               E02——Tubular Condenser

E03——Vacuum Pump Cooler                                    V01——Intermediate Tank

V02——Ethanol Receiving Tank                                 P01——Feed Pump

P02——Discharge Pump for Concentrated Liquid     P03——Discharge Pump for Ethanol

P04——Water Circulating Vacuum Pump

Working Process

Feed (V01) —— Evaporation (E01) —— Separation (S01) —— Condensation (E02) ——Storage Tank (V02)

Product Parameters

Product ModelFFE-50
Evaporation Rate (L/H)50
Heating Area (㎡)3
Condensing Area (㎡)5
Vacuum Degree (Mpa)-0.095
Steam Volume of Steam Generator (KG/H)50
Power of Steam Generator (KW)36
Power of Feed Pump (KW)0.55
Power of Discharge Pump (Concentrated Liquid, KW)0.55
Power of Discharge Pump (Ethanol, KW)0.55
Power of Water Circulating Vacuum Pump (KW)0.81
Power Supply 220V/60Hz Three Phase, other can be customized.

Product Details

1. The high quality steam generator has a high efficiency and long service life.

steam generator
Steam generator

2. The high-quality steam trap can prevent steam leakage efficiently.

steam trap
Steam trap

3. The sampling port is convenient to take samples at any time for observing the concentration of concentrated liquid.

sampling port
sampling port

4. The flowmeter is equipped for feeding and discharging, which is convenient to learn the dynamic condition of liquid material.

flowmeter is equipped

Product Advantages

1.Low heating temperature;

2.Rapid Evaporation Rate;

3.Short retention time of liquid material;

4.Continuous feeding and discharging;

5.Suitable for heat-sensitive material;

6.Low energy consumption.

One-Stop Solution Process

One-Stop Solution Process
One-Stop Solution Process

Product Application

A single-effect falling film evaporator is widely used in food, dairy, chemical, pharmaceutical, biological engineering, environmental engineering and deep processing of corn. For example, it is applicable for the evaporation and concentration of aqueous solution, organic solvent solution, fruit and vegetable juice, milk, egg product, vitamin C, collagen, infusion of tea, sodium glutamate and other liquid materials. It is especially suitable for the evaporation and concentration of heat-sensitive materials, because the beneficial elements can be protected to the greatest extent during the heating and evaporation of materials.
