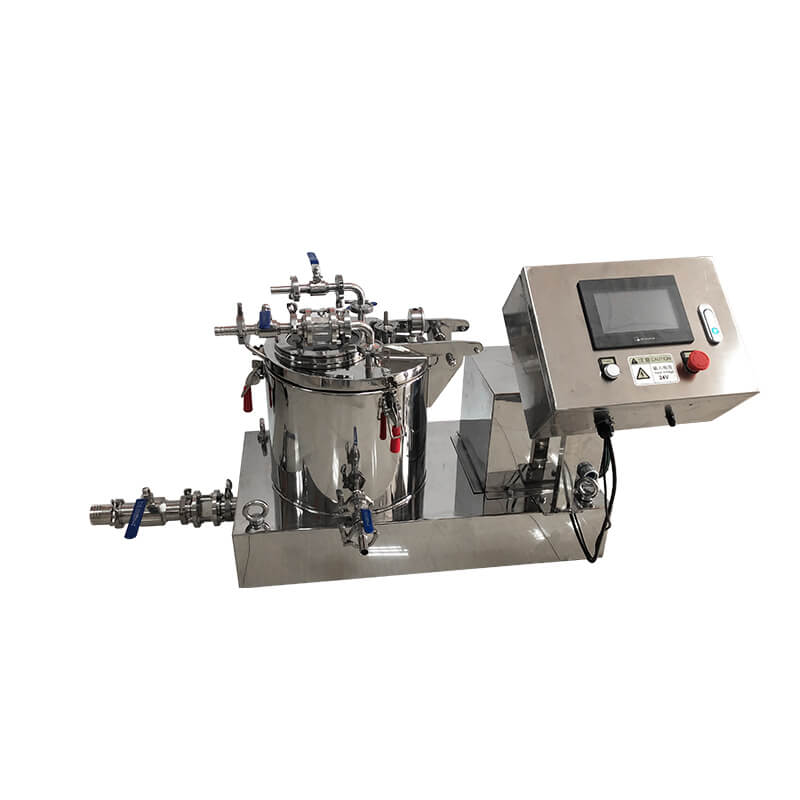

Ethanol Extraction Equipment-Industrial Centrifuge

Contact us for a free quote


Centrifuge is a separation device that uses centrifugal force to separate materials.

Centrifuges are widely used in chemical, petroleum, food, pharmaceutical, and other industries.

The working principle of the centrifuge is to use the strong centrifugal force generated by the high-speed rotation of the centrifuge rotor to accelerate the sedimentation of solid particles in the liquid, thereby separating the materials.

PP series centrifuges are hot-selling products of Henan Lanphan Industrial Co., Ltd., with advanced design, affordable price, high cost performance, and after-sales service.

Centrifuge Definition- What is a centrifuge?

PP series centrifuge can be used to extract and filter material, which extract the active ingredients in plants through a built-in program.

The machine adopts a closed structure, and the seal is made of PTFE. The explosion-proof motor, frequency changer, PLC, touch screen and other devices can be used to meet the sealed explosion-proof requirements.

Centrifuge Principle- What a centrifuge works?

The working principle of the centrifuge is to use centrifugal force to separate the liquid and solid particles, and the components in the liquid and liquid mixture. The strong centrifugal force generated by the high-speed rotation of the centrifuge rotor accelerates the sedimentation speed of the solid particles in the liquid and separates the materials.

Centrifuges are mainly used to separate solid particles and liquids in suspensions, and two kinds of liquids with different densities in emulsions that are immiscible with each other.

Operation Method- How to use a centrifuge?

Working environment: temperature -50 ° C -50 ° C. Air relative humidity is not more than 85%.

Transportation: Centrifuges must not be rolled and inverted during Shipment : must not be stacked to prevent being damaged from rainwater.

Handling: The centrifuge must be hoisted according to the position of the center of gravity of the centrifuge during the handling process. The machine is equipped with 4 lifting rings. When lifting, try to keep the level of the centrifuge. Do not roll and invert.

Storage: centrifuge should be placed where temperature is 0-40 ° C, the relative humidity of the air is not more than 85%, and there is no corrosive medium to avoid the place.

The centrifuge must be kept by a person before installation to ensure the integrity of the centrifuge. The technical status and installation of the centrifuge should be confirmed by the manufacturer before operation.

Centrifuge Parameters

Model Drum Motor Power
Liquid Storage Volume
Interlayer Volume
Diameter Height Drum Volume(L) Working Volume(L) Rotary Speed
PP-15 300 250 15 12 2000 1.1 30 9 220V/60Hz
PP-25 300 350 25 21.5 2000 1.5 40 12 220V/60Hz
PP-45 450 300 45 27.5 1500 2.2 85 20 220V/60Hz
PP-60 450 400 60 52.5 1500 3 106 25 220V/60Hz
PP-250 800 500 250 225 1100 11 380 55 220V/60Hz
PP-480 1000 600 480 440 1000 15 748 90 220V/60Hz
