Portable High Pressure Steam Sterilizer

Contact us for a free quote

Description

Operating Principle

It is essentially a wet heat sterilization method. The steam in the closed steamer can not escape, the pressure in the pot increases, the boiling point of water also increases, and the temperature of the saturated water vapor will also increase. The thermal movement of gas becomes more intense, and the penetration ability of gas molecules is strengthened, which can kill microorganisms and spores quickly and effectively, so as to achieve sterilization effect.

Product Application

It can be used in hospitals, clinics, scientific research institutes, etc., for sterilization of medical instruments, dressings, glassware, solutions, media, etc. It can also be used to produce high-quality drinking water and cooking utensils in plateau or factory.

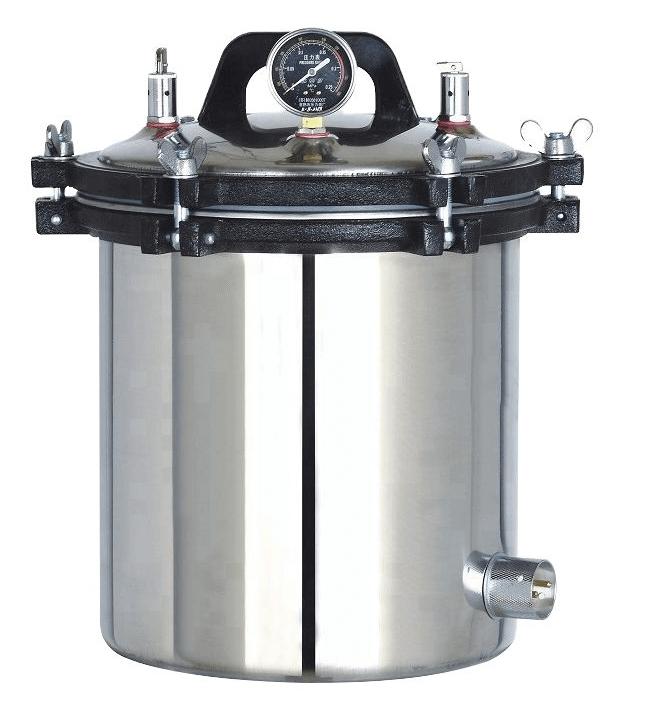

LPYX-LM Portable Autoclave



1.Fully stainless steel structure.

2.Electric or LPG heated.

3.Working pressure:0.14~0.16MPa.

4.Working temperature:126℃

5.Double scale indication pressure gauge.

6.Easy to operate,safe and reliable.

7.without timer

LPYX-LM

Technical Data

LPYX-18LM

LPYX-24LM

sterilizing volume

18L(280*260mm)

24L(280*390mm)

working pressure

0.14 – 0.16 Mpa

working temperature

126℃

Max. safety pressure

0.165 Mpa

power

AC220V/50Hz / 2 KW

dimension

410×410×430 mm

410×410×550 mm

 G.W /N. W

16/14 KG

17/15 KG

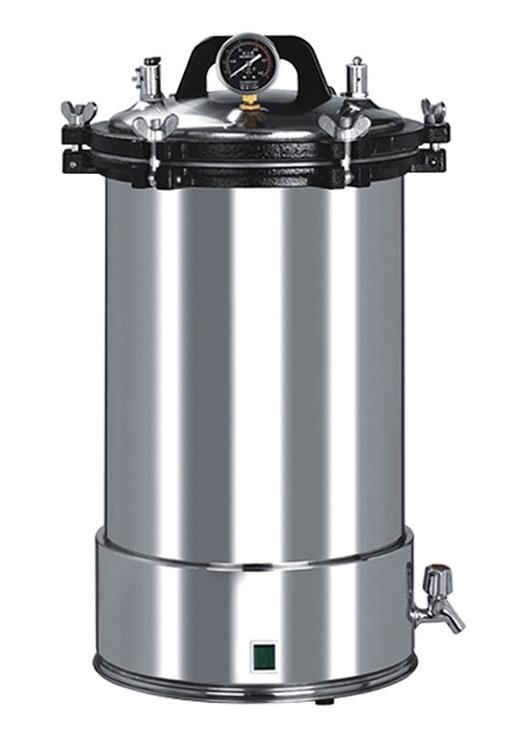

LPYX-LD Portable Autoclave

LPYX-LD







1.Fully stainless steel structure.

2.Double scale indication pressure gauge.

3.Electric heated.

4.Easy to operate,safe and reliable.

5.With Timer

Technical Data

LPYX-18LD

LPYX-24LD

 sterilizing volume

18L(280*260mm)

24L(280*390mm)

working pressure



0.14 -0.16 MPa

working temperature

126℃

temperature adjust range



126℃

Max. safety pressure



0.165Mpa

 heat average



≤±1℃

power / consumption



 AC220V.50Hz / 2KW

dimension



410×410×520  mm

410×410×630  mm

G.W/N. W



18/16KG

19/17 KG

LPYX-HDD Portable Autoclave

It supports electric heating, all stainless steel 304 material, can set temperature and prevent dry burning, with drain valve and timing.

LPYX-HDD

Technical Data

LPYX-18HDD

LPYX-24HDD

Sterilizing volume

18L(280*260mm)

24L(280*390mm)

Working pressure

0.14-0.16MPa

Working temperature

126℃

Temperature adjust range

105-126℃

Timer range

0-99 min

Max. safety pressure

0.165Mpa

Heat average

≤±1℃

Power

AC220V.50Hz / 2KW

Dimension

410×410×630 mm

410×410×750 mm

G.W / N. W

14/12 KG

15/14 KG
