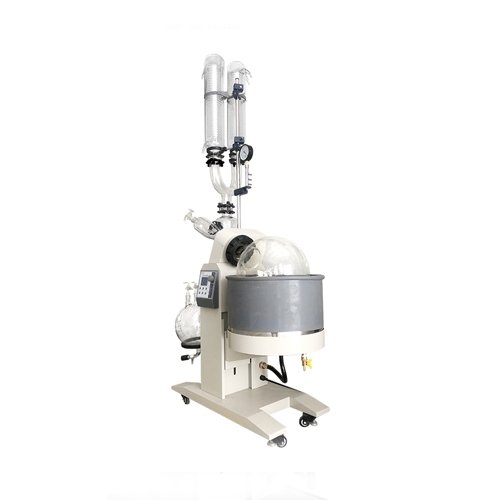

50L Dual Condenser Rotary Evaporators

Contact us for a free quote


[title style=”center” text=”Product Description” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”] The 50L dual condenser rotary evaporators adopt stepless speed regulation to make the glass rotating flask rotate at a constant speed. Materials can form a large area of uniform thin film on the wall of the flask. Then the rotating flask is heated evenly by the intelligent constant temperature water bath, and the material is evaporated rapidly under the vacuum condition. The solvent steam is recycled in the receiving flask after being cooled by the high efficiency glass condenser.

Product Features

  1. The vacuum pressure gauge can display the real-time vacuum, and the oil table have the anti-vibration performance.
  2. Controlled by the check valve, the R-1010A Rotary Evaporator can realize the continuous feeding and be available for the vacuum switch under the working condition.
  3.  The latest integrated handwheel valves are adopted, having a better sealing performance and much easier operation.
  4. The water bath is lifted and lowered electrically by adopting the deceleration booster motor, making the lifting and lowering process more stable.
  5. The rotary evaporator has the function of over-temperature safety protection. When the actual temperature exceeds the 5 degrees centigrade of the setting temperature, the rotary evaporator will power off automatically to stop heating.
  6.  If the rotary evaporator powers off suddenly during the working, it will stop heating automatically when turning on the power again.

Product Parameters

Model R1010 R1020 R1050
 Best working environment 5~35
Voltage 3phase, 220/380/50
Speed adjustment Digital display, dc stepless speed regulation
Rotary speed 20~130 20~110
Rotary motor Brushless 250
Temperature controlling Digital display temperature control,RT-99
Maximum vacuum degree 399.9(under 3mmHg)
Rotary flask 10L 20L 50L
Flange size Ø125 Flange size Ø125 Flange size Ø125
Receiving flask 5*2 10*2 20*2
Condenser Vertical,double main condenser + auxiliary condenser, high efficiency triple-circulating condenser
Cooling area main condenser 0.84 main condenser 1.6 main condenser 1.86
secondary condenser 0.22 secondary condenser 0.39 secondary condenser 0.52
Evaporation capacity water≥5 water≥8 water≥15
alcohol≥9 alcohol≥16 alcohol≥35
Bath materials Stainless steel
Bath size Φ350×220 Φ450×260 Φ550×320
Lifting Electric lifting
Lifting distance(mm) 0~160 0~190 0~180
Power(kW) 3 4 6.0(220V)
Dimension(mm) 920×550×1700 1250×600×2100 1320×770×2340

Product Details

The vacuum gauge is designed specially, with a high precision and good quality.

Main and vice condensers are adopted, with the special double reflux serpentine condenser coils inside, increasing the cooling area and promoting the cooling efficiency.

Both the temperature and the rotating speed can be displayed through LCD screen, which makes it easy to operate.

Special flange connection makes it easy to disassemble, having a high fastening strength.
