Decarboxylation reactor

Contact us for a free quote


  Product description

According to different materials, the decarboxylation reactor is divided into glass decarboxylation reactor and stainless steel decarboxylation reactor.

  The role of decarboxylation reactor:

It can be used to recover the residual ethanol reagent in the CBD extraction process. A decarboxylation process can turn CBDA into CBD.

  Components of decarboxylation reactor:

It consists of reactor body, condenser, receiving bottle, stirring motor, controller and other structures.

  Decarboxylation reactor function:

vacuum, even stirring, even heating, condensation recovery, condensation reflux, etc.

Structure diagram of glass decarboxylation reactor

Structure diagram of glass decarboxylation reactor
Structure diagram of glass decarboxylation reactor

  Structure diagram of stainless steel decarboxylation reactor

Structure diagram of stainless steel decarboxylation reactor
Structure diagram of stainless steel decarboxylation reactor

  S01——reactor body(Double-layer insulation)

  E01——Serpentine heat exchanger

  V01——receiving tank

  P01——stirring motor

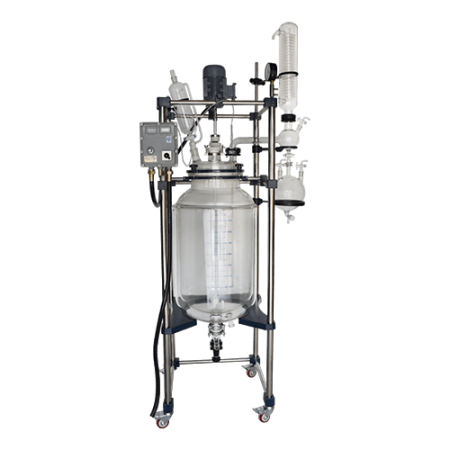

Glass decarboxylation reactor

Stainless steel decarboxylation reactor
Model DS-10 DS-20 DS-30 DS-50 DS-100 XDS-50
Glass material


Frame material

Stainless steel

Pipeline material

304 Stainless steel

Moving method

Universal wheel with brake

Universal wheel with brake
Reaction flask capacity 10L 20L 30L 50L 100L 50L
Interlayer capacity 6L 8L 10L 13L 18L 18L
Receiving flask capacity 3L 5L 10L 20L 30L 30L
Flange oil inlet and outlet circulation port

Low in, high out ¢ 35 flange


50.4 chuck

Kettle lid port quantity


Discharging port height


Kettle reaction temperature




Vacuum degree


Stirring speed


Stirring shaft radius


Based on the actuality
Stirring power 90W1/3 120W1/3 250W1/3 750W

220V/50Hz or 220V/60Hz

Dimension (mm*mm*mm) 520*600










Other models can be customized.

  Product details diagram

1. There is a valve between the three-way bottle and the collection bottle, which can switch between the reflux and collection functions at any time.


2. According to actual requirements, the glass reactor can be wrapped with thermal insulation cotton.


3. Stainless steel decarboxylation reactor has a higher heating and evaporation efficiency.


4. The motor and the kettle body of stainless steel decarboxylation reactor are mechanically sealed to obtain high vacuum.


5. Stainless steel decarboxylation reactor adopts serpentine condenser, which has a large heat exchange area and high heat exchange efficiency.


  Matched equipment

Matched equipment
Matched equipment

1.High temperature circulating oil bath provides heat energy.


2.Chiller provides cold energy.


3.Vacuum pump creates a vacuum environment.


  Product application situation

Application of decarboxylation reactor in ethanol extraction CBD process:

Chill ethanol→extraction→filtration→evaporation→


Recycle residual ethanol.

Natural cannabinoid carboxylic acids (such as tetrahydrocannabinol a, cannabidiol a) can produce simple cannabinoids (such as tetrahydrocannabinol, cannabidiol) and CO2 gasby getting heated.

Preheat before the distillation.

Working process and workplace

Production process: feeding, welding, grinding, polishing, assembly, packaging.

  Customer service


Provide 24-hour technique consultation services everyday.

Provide professional quotation information.

Provide specific product function explanation.

According to the working conditions of the product, the technical staff makes reasonable suggestions to the customersand assists the customers to make accurate selection.

Provide information on other supporting equipmentaccording to customers’ requirements.


With supervisingmanufacturing from the beginning of the product, the pass rate of raw materials into the factory can reach 100%.

The whole process of product manufacturing is carried out in strict accordance with the requirements of product manufacturing procedures, and the qualified rate of ex-factory products can reach 100%.

Provide customers with key pointinspection records of products.

Provide users with photos of production progress regularly.

Products are packed and transported strictly in accordance with export standards.

Provide timely information on the progress of transportation and logistics of products.


Provide targeted installation, usagevideos / drawings / pictures and other materials.

Under the premise of correct installation, normal maintenance and usage, the warranty period of the sold products is 1 year.

After the product warranty period expires, the product sold will be subject to a lifetime warranty. For replacement of the standard parts of the product, the seal will only be charged for the cost.

During installation and commissioning, our after-sales service personnel will communicate with users regularly to understand the running status of our products in time. Assist in installation and commissioning will be offered until the users are satisf

During the operation process of the equipment, temporary faults will be answered in time after receiving customer feedback. After receiving the maintenance notice, we can reply within 1 hour, and provide a solution within 24 hours.

Free lifetime technical support. From the day when the equipment starts to operate, we will conduct a satisfaction survey and inquire about the operation of the equipment by telephone or e-mail every six months, and record the records of the understanding.

Provide assistance in solving problems such as equipment damage during transportation.


In addition to SUS316 material, can stainless steel decarboxylation reactor be made of SUS304 material?

Stainless steel decarboxylation reactor be made of SUS304 material.

In addition to the 50L stainless steel decarboxylation reactor, are there anyother models can be made?

Yes, other models can be currently customized.

How long is the production cycle of stainless steel decarboxylation reactor?

10-15 days.

How long is the production cycle of the glass decarboxylation reactor?

3-5 days.

Can the stainless steel decarboxylation reactor provide 110V / 60Hz voltage equipment?

Stainless steel decarboxylation reactor can only provide 220V / 60Hz voltage equipment.

Product performance shared by customers

Package and transportation

The equipment is packed in a fumigation-free wooden box.



Professional design team can provide customized services.

Professionally designed products for ethanol recovery.

Can provide equipment drawings, installation instructions, operating instructions, etc.

Can provide supporting heat and cold sources.

The solution of low-temperature ethanol extraction (CBD extraction) can be systematically solved.
