Constant Temperature Drying Oven

Contact us for a free quote

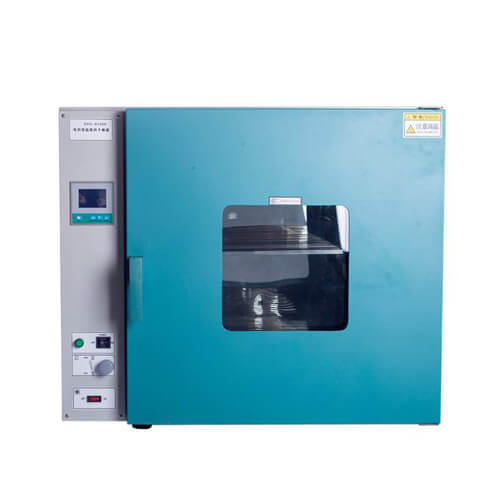

Constant temperature drying oven
Constant temperature drying oven

DHG electrothermal air blast constant drying oven operates the air blast circulation drying experiment by the ways of electrical heating. It blows out the hot air through the circulating fan, so as to keep the temperature balance in the box.

A vacuum drying oven is widely used in chemical engineering, biochemical, pharmaceutical, medical care and public health, agricultural scientific research, environmental protection and other research areas. It is applicable for powder drying, baking, as well as the disinfection and sterilization of various glass containers. In particular, it is suitable for rapid and efficient drying treatment of heat-sensitive, easily decomposed, easily oxidized materials and complex components. It can not only lower drying temperature, but prevent some materials from oxidizing in contact with air. In particular, some complicated materials can be dried rapidly. It can maintain a certain vacuum degree in the working chamber, and be filled with inert gas inside. The working chamber adopts stainless steel material, and the shape is horizontal square type, expanding the using space than the circular working chamber.

Product Parameters

DHG9075 Electric Heating Thermostatic Blast Drying Oven 80L 1550W
Working Voltage 220V 50Hz
Temperature Control Range RT+10~200℃/RT+10~250℃
Constant Temperature Fluctuation ±1.0℃
Temperature Analysis Degree 0.1℃
Temperature of Working Environment +5~40℃
Input Power 1550W
Volume 80L
Liner Size(mm)WxDxH 450x400x450
Shape Size(mm)WxDxH 740x618x630
Loading Bracket (Standard Equipped) 2
Liner Material 304 Stainless Steel
Timing Range 1~9999min

Working Principle

It is known that a vacuum drying oven is a kind of vacuum drying device under negative pressure. It makes use of a vacuum pump for pumping and dehumidification. A vacuum pump can create a vacuum condition inside the working chamber so that the boiling point of water can be lowered, accelerating the drying process.

Product Advantages

  1. The working chamber mainly adopts high quality steel plate or sanitary stainless steel, with strong corrosion resistance.
  2. The double layer toughened sight glass is bullet proof and high temperature resistance, and easy to observe as well.
  3. The heat source adopts built-in S-type anti-explosion resistance tube, safe and reliable. The heating time can reduce more than 50%.
  4. The microcomputer controller can control temperature accurately and trigger quickly.
  5. The dual-screen digital display panel, with the touch button for adjustment, is more intuitive for users to set and read temperature.
  6. The tightness of the oven door can be adjusted and the synthetic silicon sealing ring takes shape integrally, which ensure the high vacuum degree in the oven.

Product Details

packing and delivery
packing and delivery

Pre-Sale Service

  1. Provide 24-hour technical consultation and reply;
  2. Provide professional quotation information;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sale Service

  1. With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport of products are in strictaccordance with the export standard;
  6. Provide transportation schedule information to clients timely.

After-Sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
  7. Provide assistance in solving problems such as equipment damage in the transport.
