5L-I Short Path Distillation Kit

Contact us for a free quote


Product Description

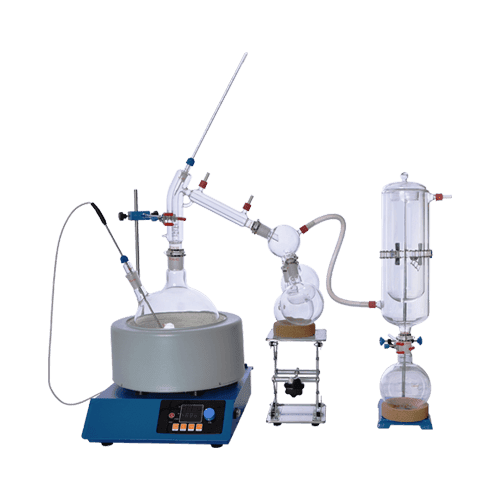

5l short path distillation kit

5L short path distillation kit

Basic constitution: The column cylinder is equipped with outside heating mantle, rotor and inside condenser. The fixing frame of rotor is precisely equipped with scratch film and anti-splash device. The inside condenser is placed in the center of evaporator, and the rotor should rotor between column cylinder and condenser.

Distillation process:The material should add from the top of evaporator and continuously spread to the heating surface through the material covered on rotor. Then, the scratch film is capable of scratching the material into a thin and flowing liquid film. During this process, the light molecular exceeded the heating surface form the condense liquid on inside condenser without any collision. Then, the molecular flows along the condenser tube, and discharge through the discharge tube on the bottom of evaporator. The residue liquid (heavy molecule) is collected on the circular channel under the heating zone, and flows through the discharge tube on one side.

Product Details

Glass parts are connected by frosted mouth, which is easy to operate and has good sealing.


Adopt two ports reaction bottle, with a special feeding port, which is convenient for feeding.

Product Details
Two ports reaction bottle

The vacuum valve can be equipped on the micro vertical spine distiller, used for vacuum pumping.

Vacuum Valve
Vacuum Valve

Micro vertical spine distiller, vertical spine structure, used for fractionation function;Vacuum sandwich is used to weaken the influence of wind and greenhouse to maintain the appropriate temperature gradient in the column.


Product Parameters

Short-Path Distillation
Model SD-2 SD-5 SD-10 SD-20
Material G3.3
Heating Capacity(ml) 2000 5000 10000 20000
Heating temperature(℃) Room temperature -250
Accuracy(℃) ±1
Vaccuum Degree(Mpa) 0.098
Working temperature(℃) 5-40
Voltage 220V/50Hzor110V/60Hz 380V/50Hz
Package Size 450*450*600 580*580*735 850*850*600
Weight 18 24 30


1. The product is made of high quality borosilicate.

2. The glass parts are even and have no flaws.

3. The product is meticulous in workmanship.

4. The structural dimensions can be customized according to the customer’s specific needs.

Quality Certification

Quality Certification
Quality Certification

Additional information

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory, Food Shop, Energy & Mining, Food & Beverage Shops

Power Source:






Brand Name:



1 Year
