2XZ Series Rotary Vane Vacuum Pump

Contact us for a free quote

Description

2XZ-series-rotary-vane-vacuum-pump
2XZ-series-rotary-vane-vacuum-pump

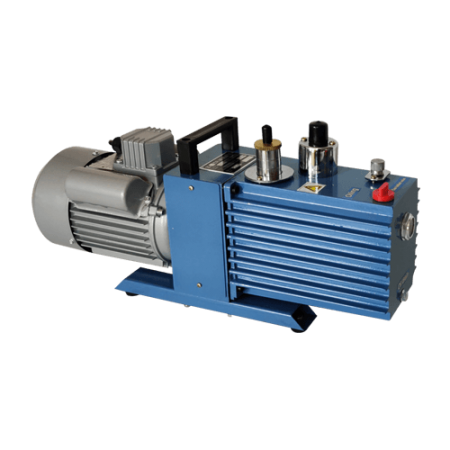

2XZ series rotary vane vacuum pump is a double stage high speed direct coupling structure rotary vane type vacuum pump, which is the basic equipment used to pump gas of the sealing container. Pump cavity is provided with a rotor, and the rotor slot with rotary vane.

2XZ series rotary vane vacuum pump is a double stage high speed direct coupling structure rotary vane type vacuum pump, which is the basic equipment used to pump gas of the sealing container. Pump cavity is provided with a rotor, the rotor slot with rotary vane. The rotor drives the rotary vane rotation, the rotary vane close to the chamber wall and separated air inlet port from the discharge port, and the air inlet area of cavity volume is periodically enlarged and inhale, discharge chamber volume is periodically reduced and compressed gas, open the exhaust valve to exhaust gas and then to obtain vacuum. Its working performance is composed of two parts, the high level and low level. Its suction is connected with vacuum equipment, when in operation The gas in container will have a large number of suction and discharge, when the equipment got vacuum, high pressure grade exhaust valve is closed, high-pressure grade inlet gas will be transferred to the second level, and through the second stage suction and discharge vacuum equipment, it can obtain a certain vacuum. Pump connecting shaft with motor, high speed, small appearance, compact structure, convenient mobility work.

Pumping rate: 0.25~30L/S

Gas type: Clean dry air without any other mixture at ambient temperature.

Working requirements:

When the inlet pressure is greater than 6500Pa, continuous working hours must not be more than 3 minutes so that avoid fuel injection to damage pump.

When the inlet pressure is less than 1330pa, it is allowed to work continuously for a long time.

Ambient temperature: 5℃-40℃, the relative temperature is not higher than 90%.

Product Parameters

Model2xz-0.252xz-0.52xz-12xz-22xz-42xz-62xz-82xz-152xz-25
Air bleed speed m³/h(L/S)50HZ0.9(0.25)1.8(0.5)3.6(1)7.1(1)14.4(4)21.6(6)28.8(8)54(15)90(25)
60HZ1.1(0.3)2.1(0.6)4.3(1.2)8.6(2.4)17.2(4.8)26(7.2)34.5(9.6)64.8(18)108(30)
Extreme pressure(Pa)partial pressure≤6×10-1≤6×10-2≤6×10-2≤6×10-2≤6×10-2≤4×10-2≤4×10-2≤4×10-2≤4×10-2
full presure≤6.5≤1.33≤1.33≤1.33≤1.33≤1≤1≤1≤1
Ritating speed(r / min)50HZ140014001400140014001400140014001400
60HZ172017201720172017201720172017201720
Motor power(kw)0.120.180.250.370.550.751.11.52.2
Noise(dBA)636565686868707072
Oil volume(L)0.50.60.711.22345
Size(mm)403 * 130 * 240447 * 168 * 260469 * 168 * 260514 * 168 * 282565 * 168 * 282565 * 200 * 342650 * 240 * 430700 * 240 * 430770 * 240 * 430
GW / NW(KG)16/1517/1618/1722/2024/2250/4070/6075/8685/98

Model Meaning

  Model Meanings
Model Meanings

2: It represents the two-stage pump.

X: It represents the rotary vane vacuum pump.

Z: It represents the coupling between the pump and the motor.

8: It represents the pumping rate per second.

Structure Diagram

Structure Diagram
Structure Diagram

Product Details

1. There is an air inlet, an air outlet, an oil inlet and a switch, which is a reasonable layout and easy to operate.

inlet and outlet ports
inlet and outlet ports

2. The motor adopts the double capacitor design, operating more safer.

motor
motor

3. There is a large sightglass for observing the oil level at any time.

oil level
oil level

4. The optional oil mist filter can filter out the oil fume and splashes from the air inlet, and discharge clean gas.

oil mist filter
oil mist filter

Product Advantages

1. Small size, light weight, low noise;

2. Easy to start;

3. It has gas ballast valve, which can remove a small amount of water vapor;

4. Equipped with automatic anti back oil double insurance device;

5. Can be used alone, can also be used as the fore stage pump and pre pump of varieties of high vacuum system.

Product Application

2XZ Series Rotary Vane Vacuum Pump is widely used in aerospace, semiconductor, coating, food packaging, drying, refrigeration, scientific research, medical, electronic, chemical, pharmaceutical and other professional units, colleges, universities and other departments of the laboratory.
