Product Description

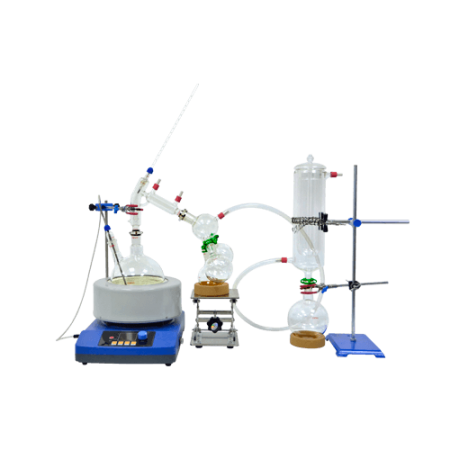

1l short path distillation kit
1L short path distillation kit

The short path distillation is a technique that removes solvents form mixtures through evaporation, which is mainly used for liquid-liquid separation. The principle is that the pressure difference between the boiling film and condensing surface is the driving force of the steam flow, and the minimum pressure will cause the flowing of steam. Under the 1mbar, the operation requires that there is the shortest distance between the boiling surface and condensing surface. The evaporator manufactured based on the principle is called the short-path distillation. The short-path distillation (molecular distillation) is equipped with a inside condenser which is opposite to the heating surface, and make the operation pressure reduce to under 0.001mbar. Its relative low boiling temperature is very suitable for the material with heat sensitive and high boiling point.

Product Parameters

Short-Path Distillation
ModelSD-2SD-5SD-10SD-20
MaterialG3.3
Heating Capacity(ml)200050001000020000
Heating temperature(℃)Room temperature -250
Accuracy(℃)±1
Vaccuum Degree(Mpa)0.098
Working temperature(℃)5-40
Voltage220V/50Hzor110V/60Hz380V/50Hz
Package Size450*450*600580*580*735850*850*600
Weight182430

Product Details

Glass parts are connected by the frosted mouth, possessing easy operation and good sealing performance. The plastic clamps are used to fix, which can avoid loose interface.

Connector

The vertical spine structure can be used for fractionation function. The vacuum sandwich is used to weaken the influence of wind and greenhouse to maintain the appropriate temperature gradient in the column.

Distiller
Distiller

The vacuum valve can be equipped on the micro vertical spine distiller, used for vacuum pumping.

Vacuum Valve
Vacuum Valve

The double-mouth reaction flask is adopted, with a special feeding port, which is convenient for feeding.

Product Details
Double-Mouth Reaction Flask



Product Parts

1l short path distillation kit
1L short path distillation kit
  1. Distiller
  2. Electric heating mantle
  3. Lifting support
  4. Cold trap
  5. Receiving flask
  6. Glass parts
  7. Reaction flask
  8. Thermometer

How to Show Short Path Distillation Apparatus?

[title style=”center” text=”Matching Products” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

[ux_products col_spacing=”xsmall” ids=”350,211″]

[title style=”center” text=”Quality Certification” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

Quality Certification
Quality Certification

[title style=”center” text=”Package & Delivery” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

[title style=”center” text=”Send Message” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

    Additional information

    Applicable Industries:

    Manufacturing Plant, Food & Beverage Factory, Food Shop, Energy & Mining, Food & Beverage Shops

    Power Source:

    Electric

    Voltage:

    380V/220V/110V

    Certification:

    CE

    Brand Name:

    Lanphan

    Warranty:

    1 Year
