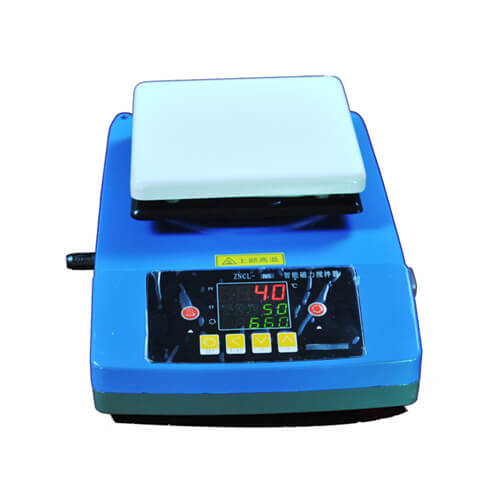

ZNCL-BS Intelligent Plate Type Magnetic Stirrer

Contact us for a free quote


ZNCL-BS intelligent plate type magnetic stirrer is the lab instrument to mix liquid, and mainly used for stirring or concurrent heating and stirring liquid of low viscosity or solid-liquid mixture. Its heating plate size is 230mm×230mm, power is 600W, and suitable for 50-5000ml beakers.

Product Parameters

Product Name ZNCL-BS Intelligent Plate Magnetic Stirrer
Power 220V/50Hz (customized)
Heating Plate Material Ceramic
Speed Adjustable Range 50-1800rpm Digital Display
Motor Power 40W DC14-24-V
Stirring Volume 50-500ml 50-2000ml 50-5000ml 50-10000ml
Heating Plate(mm) 140X140 180X180 230X230 280X280
Heating Power 260W 350W 600W 750W
Temperature Contorl Accuracy ±1℃
Temperature Contorl Method Digital display, silicon controlled, measure temperature by interior and external sensor
Heating Temperature Max surface temperature 380℃
Boiling Water 10-25 minutes
Resistance Wire Cr20Ni80
Working Time Continuous
Overall Dimension(mm) 265X155X120 325X215X120 430X270X150 500X330X150
Package Dimension(mm) 315X205X170 375X265X170 480X320X200 550X380X200
Weight(g) 2200±200 4000±200 7000±200 9500±200


packing and delivery
packing and delivery

Pre-Sale Service

  1. Provide 24-hour technical consultation and reply;
  2. Provide professional quotation information;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sale Service

  1. With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport of products are in strictaccordance with the export standard;
  6. Provide transportation schedule information to clients timely.

After-Sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
  7. Provide assistance in solving problems such as equipment damage in the transport.

Additional information






220V 50HZ
