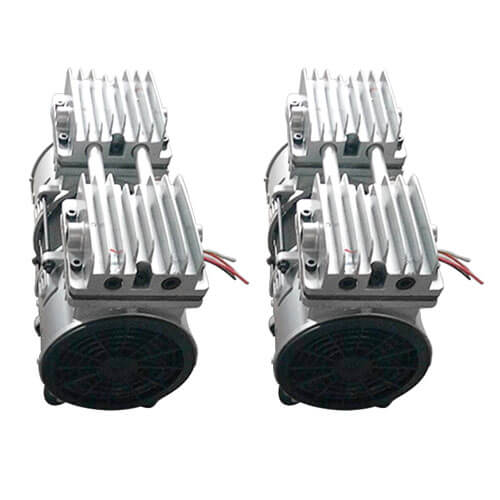

YH500 Diaphragm Vacuum Pump

Contact us for a free quote


YH500 diaphragm vacuum pump is a kind of variable displacement type vacuum pump. It has excellent functions and is made of high-quality materials, and it can eliminate the disadvantages of similar products at home and abroad.

YH500 Diaphragm Vacuum Pump
YH500 Diaphragm Vacuum Pump

Product Features

1.No working medium (no oil) is needed, no pollution occurs, and the gas exchange chamber of the machine has built-in filter material to ensure the purity of the air.
2.New technologies and new materials are used in the production process. It is easy to move and smooth, ensuring ideal vacuum and high air flow.
3, the special motor has passed the EU CE certification, provided by the professional export motor manufacturer ODM, reasonable rotation design, equipped with a temperature protector, automatically power off after the pump body temperature reaches 130 ° C, protect the motor in long-term operation Damaged.
4, the use of friction-free film body movement, no heat, no friction loss. The diaphragm is made of imported rubber, which is corrosion resistant and has a long service life
5.The body is designed with an automatic cooling exhaust system to ensure continuous operation for 24 hours.
6. with adjustable pressure design, can meet a certain range of vacuum and gas flow rate.
7.The bearing adopts imported bearings, which is stable in operation, low in noise and high in work efficiency.
8.The parts of the anti-corrosion pump that are in contact with the gas are treated with Teflon surface, which has complete chemical resistance.
9, small size, light weight, easy to move, save laboratory space, convenient maintenance and maintenance.

Product Parameters

Model YH500 YH700
Voltage/Hertz 220V/50Hz 220V/50Hz
Rotating speed ≥1390r/min ≥1390r/min
Input power ≤550W ≤800W
Working temperature 5~40℃ 5~40℃
Extremely vacuum 700Kpa 700Kpa
Volume flow 40L/min 56L/min
Size 264.5×127×186mm 262×128×214.5mm
Insulation grade B B
