Single Effect External Circulation Evaporator

Contact us for a free quote

Description

Product Description

The single-effect external circulation evaporator completes most of the gas-liquid separation in the separation chamber.

The single-effect external circulation evaporator is a device that uses negative pressure to heat the material to make the material liquid boil, remove the vaporized part, and concentrate the material liquid. The equipment has a wide range of applications in many fields such as biopharmaceuticals, health foods, daily chemicals, flavors and fragrances.

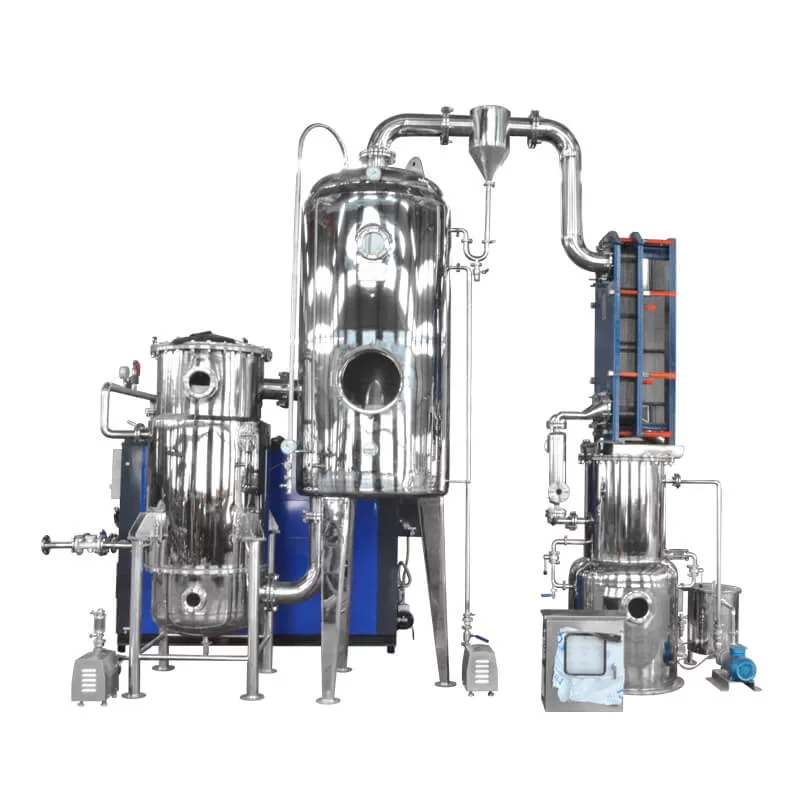

evaporator
evaporator



Working Principle

The thinner liquid with lower concentration enters the tube side of the heater, and the high-temperature steam enters the shell side of the heater. The steam indirectly heats the material liquid in the tube side, the liquid level rises, and it is injected into the separator from the spray tube for flash evaporation. In the separator, the heavier material liquid drops to the bottom and returns to the heater to boil and spray into the separator again to form a cycle; The lighter secondary steam rises to the top and enters the shell side of the condenser, enters the condensate collection tank after becoming a liquid phase, and is finally discharged by the pump for recycling or other treatment. A part of the gas is sucked and discharged by the vacuum pump. When the material liquid is concentrated to a certain degree, the material can be discharged after the sampling is confirmed to be qualified. At this point, the evaporation concentration process is completed.

principle of evaporator
principle of evaporator

Technical Parameter

Model

DWZF-100 DWZF-200 DWZF-500 DWZF-1000 DWZF-2000

Evaporation rate (l/h)

100 200 500 1000

2000

Heating area (m2)

4 8 20 40

80

Condensation area (m2)/plate

4 8 20 40

80

Steam pressure (mpa)

<0.2

Vacuum (mpa)

0.6~0.8

Feed pump (kw)

0.55 0.55 1.1 1.5

1.5

Discharge pump (concentrated liquid, kw)

0.55 0.55 1.1 1.5

1.5

Discharge pump (ethanol, kw)

0.55 0.55 1.1 1.5

1.5

Water ring vacuum pump (kw)

0.81 1.5 2.2 3.85

4

Total power (kw)

2.46 3.15 5.5 8.35

8.5

Power supply

220V/60Hz three-phase, other can be customized

Structure Introduction

The single-effect external circulation evaporator is a common type of single-effect evaporator, which is composed of heater, evaporator, condenser and other components. The main parts are made of 304 high-quality stainless steel.

structure of evaporator
structure of evaporator



Application

The single-effect external circulation evaporator is widely used in the evaporation and concentration of liquid materials in the pharmaceutical, chemical, food and other industries.

application of evaportor
application of evaportor

Features

Closed system

The energy saving effect is remarkable.

Unique defoaming device to prevent material running out.

The equipment has good corrosion resistance and is more convenient to clean.

It can be equipped with a microcomputer control system, which is easy to use and stable in effect.

The heating time of the material is short, the evaporation speed is fast, and the concentration ratio is large.

Certification

Certification
Certification

Packaging and Shipping

Packing and Shipping
Packing and Shipping
