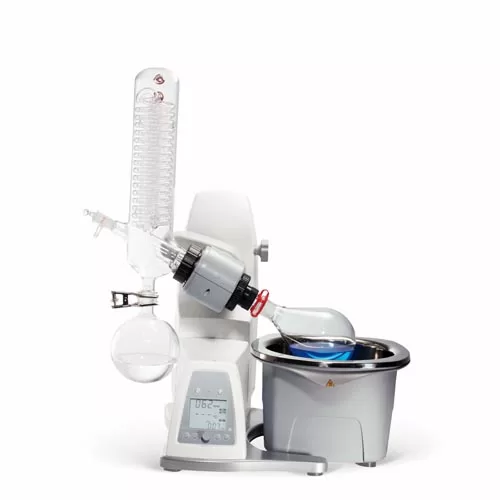

RE100B-Pro 1L Rotary Evaporator

Contact us for a free quote


Product Description

RE100B-Pro rotary evaporator is a new generation intelligent product of Henan Lanphan, the temperature and rotating speed is liquid crystal display, control part uses high performance single chip as the main control chip, according to formulate controlled member to use dedicated control program. The RE100B-Pro rotary evaporator is elegant in appearance, stable in performance.

RE100B-Pro 1L Rotary Evaporator
RE100B-Pro 1L Rotary Evaporator

Product Details

The water bath is resistant to high temperature and corrosion.

Water Bath
Water Bath

The condenser uses double spiral coil pipe, and the condensation area is up to 1500cm². The solvent condensation speed is fast, and recovery rate approaches to 100%.

Condenser Tube
Condenser Tube

The rotating bottle is made of high-quality material and has long service life.

Rotating Bottl
Rotating Bottle

Large LCD screen can display temperature, rotating speed, timing information at the same time, which is intelligent and convenient.


Product Parameters

Rotating Flask Volume[L]1L (l00mL 250ml 500ml 2L Optional)
Receiving Flask Volume[L]1L (l00mL 250mL 500mL 2L Optional)
Voltage [VAC]100-120/200-240
Frequency [Hz]50/60
Power [W]1400
Vacuum Degree[Pa]399.9(3mmHg)
MotorBrushless DC Motor
Speed Range [rpm]20-280
Speed DisplayLCD
Forward & Reverse RotationYes
Temperature Range [℃]RT-180
Temperature Control Accuracy[℃]士 1
Heating Power [W]1300
Temperature DisplayLCD
Condenser Cooling Area[cm2]1500
Lifting MethodElectric
Lifting Distance [mm]150
Time DisplayLCD
Time Setting Range [min]1-999
Size [DxWxHmm]420x400x580
Weight [kg]20
Environmental Temperature Range ℃]5-40
Relative Humidity80%
DIN EN60529 Protection LevelIP20

Quality Certification
