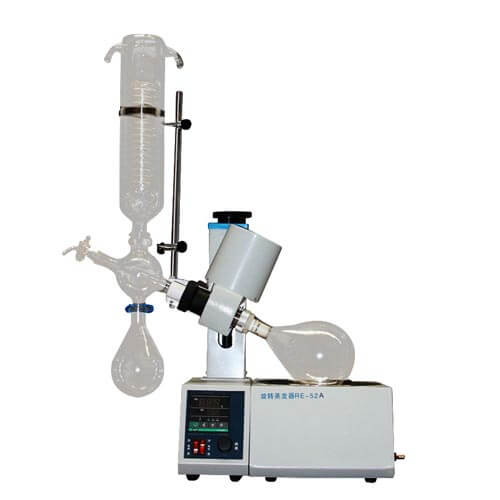

RE-52A 1L Rotary Evaporator

Contact us for a free quote


Product Description

RE-52A rotary evaporator’s maximum capacity is 2000ml, rotate speed is 0-120r.p.m, motor power is 25W. RE-52A rotary evaporator uses micro-motor to change speed, uses lead screw up and down, hand wheel rotating makes main engine up and down. Its main engine can go up and down automatic, the transparent shield above the water bath kettle has the function of heat preservation, energy saving, anti-explosion, splash-proof and anti-pollution. Rotary evaporator can rotate to form thin film and efficiently evaporation under thermostat heating and negative pressure, then cooling recycle the solvent, it is especially suitable for heat reactive material’s crystallization, separation and solvent recovery.
RE-52A 1L Rotary Evaporator
RE-52A 1L Rotary Evaporator

Product Parts

Intelligent digital display lifting water and oil universal bath, stainless steel one-time forming liner without welding, annular heating tube heating evenly, heating rate is fast.
Water Bath
Water Bath
Use lead screw up and down, hand wheel rotating makes main engine up and down.
Manual tilt
Manual tilt
The digital display of rotor speed and the temperature of the heating pot makes the parameters information clear at a glance. The main engine can be raised or lowered by manual.
Borosilicate glass one – time forming high efficiency serpentine condensing tube, good condensing effect and high recovery.
Condenser Tube
Condenser Tube

Product Parameters

Glass Material GG-17
Support Material Antisepsis Plastic Spraying
Shell Material Antisepsis Plastic Spraying 250*365*150mm
Inner Container Material Stainless Steel  240*120mm
Volume of Rotary Bottle 1L 24# Standard Aperture
Volume of Recycling Bottle 0.5L 24# Standard Aperture
Vacuum Degree 0.098Mpa
Rotating Power 30W Brushless Electric Machine
Rotating Speed 0-120rpm
Heating Power 1KW
Temperature Control Range of Bath Kettle 0-99℃
Temperature Accuracy ±1℃
Voltage/Frequency (V/Hz) 220V/50Hz
Up and Down Distance 120mm
Shape Size(mm*mm*mm) 770*440*1005
Package Size(mm*mm*mm) 590*460*440 0.12³
Package Weight (KG) 21
Function Allocation Speed Adjustment Mode Electrodeless Speed Regulation
Temperature Display Mode Digital Display CU50 Type Sensor
Temperature Control Mode Smart Temperature Control
Sealing Mode PTFE Sealing
Condenser Vertical Condenser 85*460mm 29#Standard Aperture
Up and Down Mode Manual Up and Down of Main Engine
Continuous Charging 19# Standard Aperture Feeding Valve
Optional Equipping Anti-splash Device Equipping Transparent Cover of Bath Kettle
Temperature Control Range of Bath Kettle 0-400℃

Packing List

Machine Part Glass Part
Head with the motor 1 set Rotary Bottle 1 pc
Host 1 unit Recycling bottle 1 pc
Control box 1 pc Condenser 1 pc
Bath pot 1 unit 19# feeding valve 1 pc
Recycling bottle clamp 1 pc Adapter 1 pc
PTFE Tube 1 pc Glass Shaft 1 pc
Heating wire 1 pc
Fasten Screw 1 pc
PTFE Flask remover 1 pc
Nut with pad 2 sets

Spare Parts

Operation Manual 1 pc 10A fuse 2 pcs
Warranty Card 1 pc Sealing gasket 1 pc
Quality Certificate 1 pc
Packing List 1 pc
