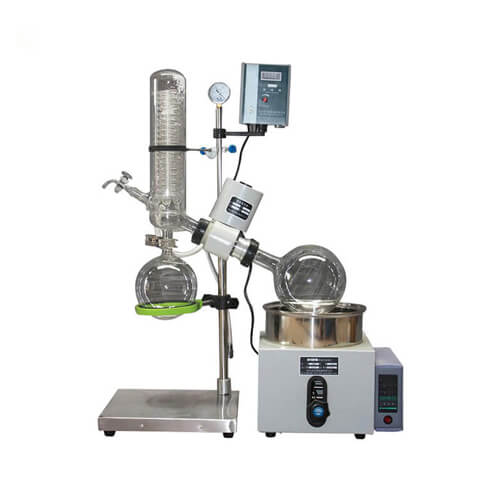

RE-201D 1L Rotary Evaporator
Product DescriptionRE-201D rotary evaporator’s maximum capacity is 2000ml, rotate speed is 5-120r.p.m, motor power is 40W. RE-201D rotary evaporator is the basic rotary evaporator series product of Henan Lanphan at present, it has manual up and down handle. The independent developed and elaborate designed machinery and glass components can accurately set the location of glass component. The digital display rotate speed and heating kettle’s temperature helps you optimally control all distillation process. New type fixation system greatly simplified the operation process of changing evaporating flask.
Product DetailsIntelligent digital display lifting water and oil universal bath, stainless steel one-time forming liner without welding, annular heating tube heating evenly, heating rate is high. Among standard bottle neck glass, there has PTFE clamp cover, which can prevent glass ground from breaking. The digital display of rotor speed and the temperature of the heating pot makes the parameters information clear at a glance. The main engine can be raised or lowered by manual. Equipped with efficient vertical condensate glass component, condensation area can reach up to 1500cm², fast condensation speed, recovery rate almost 100%.
|Support Material||Stainless Steel|
|Shell Materia||Antisepsis Plastic Spraying 270*270*195mm|
|Inner Container Material||Stainless Steel 250*140mm|
|Volume of Rotary Bottle||0.25-2L 24#Standard Aperture|
|Volume of Recycling Bottle||1L 24#Standard Aperture|
|Temperature Control Range of Bath Kettle||300℃|
|Up and Down Distance||120mm|
|Package Size(mm*mm*mm)||590*460*460 0.12 m³|
|Package Weight (KG)||21|
|Electric Cabinet||1||Recycling Bottle||1|
|Special Sealing Ring||1||Condenser Pipe||1|
|Sealing Gasket||1||Suction Pipe||1|
|Bottle Clamp||2||Charge Pipe||1|
|Protective Pipe 3A||1||Protective Pipe||1|
|Thermostat Water Bath Kettle||1||Special Components (additional Purchase)|
