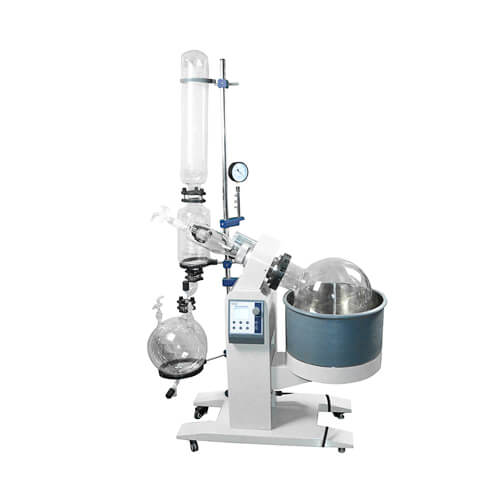

R-1020A Rotary Evaporator
R-1020A Rotary Evaporator
R-1020A rotary evaporator adopts stepless speed function to make rotary flask rotates in constant speed, the material formed a large area of thin film, then the constant temperature water bath begin to uniform heat the rotary flask and the material is evaporated in high speed under vacuum condition, the solvent steam is refrigerated by efficient glass condenser and received to receiving flask.R-1020A rotary evaporator is a newly designed rotary evaporator of our company, this series has 5L, 6L, 10L, 20L, 50L for selection.

Product Advantages

R-1020A has new breakthroughs based on RE-2002 rotary evaporator:1. Equipped with PTFE valve between condenser and receiving flask, and has easy operation and good sealing.2. Check valve control, continuous charging, available for vacuum switch in working condition. The check valve also could be replaced with hand-operated valve to convenient for operation, better sealing performance.3. The discharging valve is made from teflon, consider of thermal expansion, other valves use glass valve element.4. The water bath is electric lifting, lifting part use deceleration reinforcement motor, lifting process is more stable.5. Use thicken rotary bottleneck to enhance loading bearing strength.6. Use thicken rotary axis to enhance evaporation efficiency.7. If the rotary evaporator sudden power lost during operation, when reconnect the power, it will automatic stop heating.

Product Parts

Special designed vacuum meter has high precision and good quality.
Vacuum Meter
Vacuum Meter
LCD screen display both temperature and rotating speed, and the operation is simple and convenient.
Main condenser and auxiliary condenser structure, double backflow snakelike condenser increase cooling area and promote cooling efficiency.
Condenser Tube
Condenser Tube
Flange connection makes it easy to dismount with high fastening strength.
Flange connection
Flange connection

Product Parameters

Optimum Ambient Temperature (℃)5~35
Power(V/Hz)Single Phase 220V/50Hz(water bath & motor) Single Phase 220V/60Hz(water bath & motor) Single Phase 110V/50Hz(water bath & motor)Single Phase 220V/50Hz(water bath & motor) Single Phase 220V/60Hz(water bath & motor) Three Phase 220V/50Hz(water bath), single phase motor Three Phase 380V/50Hz(water bath), single phase motor
Main Engine Speed RegulationDigital Display Frequency conversion stepless speed regulationDigital Display DC stepless speed regulation
Main Engine Rotary Speed (rpm)20~14020~13020~110
Rotary Motor Power (W)100250
Temperature Control (℃)Digital display temperature control,normal temperature-180
Max vacuum degree (Pa)399.9(under 3mmHg)
Rotary Flask (L)5/6 Flange Ø5010 Flange Ø12520 Flange Ø12550 Flange Ø125
Rotary Flask Bottleneck Size (mm)40120
Glass Rotary Axis Size (mm)2850
Receiving Flask (L)351020
Condenser Tubemain condenser, double backflow condenserMain condenser +subordinate condenser, double backflow condenserMain condenser +subordinate condenser, three backflow condenser
Condensation Area (㎡)0.27Main 0.42 Subordinate 0.22Main 0.8 Subordinate 0.39Main 0.91 Subordinate0.52
Evaporative Capacity (L/h)water≥2 ethyl alcohol≥5.4water≥3.2 ethyl alcohol≥8.6water≥5 ethyl alcohol≥14.3water≥9 ethyl alcohol≥24.5
Water Bath MaterialStainless Steel (Covered with Silicone Rubber Case)
Water Bath Size (mm)Φ300×170Φ350×220Φ450×260Φ550×320
Lifting FunctionElectric Lifting
Lifting Distance (mm)0~1500~1600~1900~180
Total Power(kW)
Packing Dimension (mm)950*450*10301100*500*17501200*600*19001400*700*2200
