R-1005A 5L Vacuum Rotary Evaporator

Contact us for a free quote


Product Description

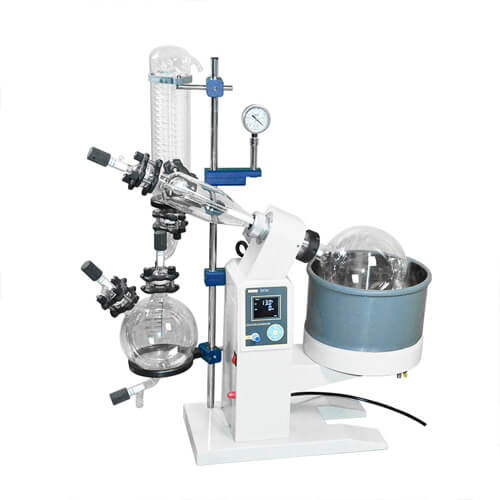

R-1005A 5L Vacuum Rotary Evaporator
R-1005A 5L Vacuum Rotary Evaporator
R-1005A 5L vacuum rotary evaporator adopts stepless speed function to make rotary flask rotates in constant speed, the material formed a large area of thin film, then the constant temperature water bath begin to uniform heat the rotary flask and the material is evaporated in high speed under vacuum condition, the solvent steam is refrigerated by efficient glass condenser and received to receiving flask. R-1005A rotary evaporator is a newly designed rotary evaporator of our company, this series has 5L, 6L, 10L, 20L, 50L for selection.

Product Advantages

R-1005A has new breakthroughs based on RE-501 rotary evaporator: 1. Equipped with PTFE valve between condenser and receiving flask, and has easy operation and good sealing. 2. LCD screen is clear and convenient. 3. All valves use newest hand wheel, good sealing, operation is more simple and convenient. 4. The water bath is electric lifting, lifting part use deceleration reinforcement motor, lifting process is more stable.evaporator will automatic power off. 6. If the rotary evaporator sudden power lost during operation, when reconnect the power, it will automatic stop heating.

Product Details

Use shockproof vacuum meter, and has good quality and long service life.
Vacuum Meter
Vacuum Meter
Main condenser and auxiliary condenser structure, double backflow snakelike condenser increase cooling area and promote cooling efficiency.
Condenser Tube
Condenser Tube
Flange connection make it easy to dismount,high fastening strength.
Flange connection
Flange connection
LCD screen display both temperature and rotating speed, and the operation is simple and convenient.

Product Parameters

Model R-1005A/R-1006A R-1010A 1020A 1050A
Optimum Ambient Temperature (℃) 5~35
Power(V/Hz) Single Phase 220V/50Hz(water bath & motor) Single Phase 220V/60Hz(water bath & motor) Single Phase 110V/50Hz(water bath & motor) Single Phase 220V/50Hz(water bath & motor) Single Phase 220V/60Hz(water bath & motor) Three Phase 220V/50Hz(water bath), single phase motor Three Phase 380V/50Hz(water bath), single phase motor
Main Engine Speed Regulation Digital Display Frequency conversion stepless speed regulation Digital Display DC stepless speed regulation
Main Engine Rotary Speed (rpm) 20~140 20~130 20~110
Rotary Motor Power (W) 100 250
Temperature Control (℃) Digital display temperature control, normal temperature-180
Max vacuum degree (Pa) 399.9(under 3mmHg)
Rotary Flask (L) 5/6 Flange Ø50 10 Flange Ø125 20 Flange Ø125 50 Flange Ø125
Rotary Flask Bottleneck Size (mm) 40 120
Glass Rotary Axis Size (mm) 28 50
Receiving Flask (L) 3 5 10 20
Condenser Tube main condenser, double backflow condenser Main condenser + subordinate condenser, double backflow condenser Main condenser + subordinate condenser, three backflow condenser
Condensation Area (㎡) 0.27 Main 0.42 Subordinate 0.22 Main 0.8 Subordinate 0.39 Main 0.91 Subordinate0.52
Evaporative Capacity (L/h) water≥2 ethyl alcohol≥5.4 water≥3.2 ethyl alcohol≥8.6 water≥5 ethyl alcohol≥14.3 water≥9 ethyl alcohol≥24.5
Water Bath Materia Stainless Steel (Covered with Silicone Rubber Case)
Water Bath Size (mm) Φ300×170 Φ350×220 Φ450×260 Φ550×320
Lifting Function Electric Lifting
Lifting Distance (mm) 0~150 0~160 0~190 0~180
Total Power(kW) 2.2 4.8 6.3 8.3
Packing Dimension (mm) 950*450*1030 1100*500*1750 1200*600*1900 1400*700*2200

Packing List

Host 1 Rotary Bottle 1
Electric Cabinet 1 Recycling bottle 1
Aluminum Backing Ring of Special Sealing Ring 1 Evaporator Condenser Pipe 1
Sealing Gasket 1 Suction Pipe 1
Protective Pipe 3A 1 Protective Pipe 1
Thermostat Water Bath Kettle 1 Special Components (additional purchase)
