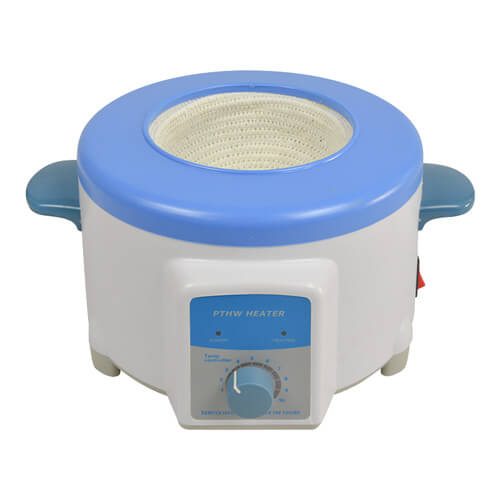

Product Description
PTHW thermostat heating mantle is capable of achieving thermostat heating by regulating thermostat heating. It uses the alkali-free glass fiber as the insulating material with Cr20Ni80 alloy wire inside.
Product Parameters
Specification of 100-2000ml thermostat heating mantle
| 100-2000ml thermostat heating mantle | ||||||
| Power supply | 220V 50HZ (110V 50/60HZ is available) | |||||
| Volume(ml) | 100 | 150 | 250 | 500 | 1000 | 2000 |
| Power(W) | 130 | 170 | 210 | 230 | 530 | 650 |
| Temperature Control Accuracy | ±1℃ | |||||
| Heating Temperature | Highest surface temperature is 380℃ | |||||
| Boiling | 100ml water 10-25min | 150ml water 10-25min | 250ml water 10-25min | 250ml water 10-25min | 250ml water 10-25min | 250ml water 10-25min |
| Furnace Wire | Cr20Ni80 | |||||
| Insulating Layer | Alkali-free glass fiber,temperature resistance ability can reach to 450℃ | |||||
| Insulating Coefficient | Relative humidity ≤35% ≥500M | |||||
| Heat Insulation Layer | Keep warm by environmental protection material–aluminum silicate wool which has been vacuum case-hardened | |||||
| Upper Opening Diameter(mm) | 75 | 80 | 95 | 115 | 145 | 180 |
| Depth(mm) | 40 | 40 | 60 | 70 | 85 | 105 |
| Shell Diameter(mm) | 200 | 200 | 230 | 230 | 260 | 270 |
| Shell Height(mm) | 140 | 140 | 155 | 155 | 165 | 190 |
| Weight(g) | 1100+50 | 1100+50 | 1200+50 | 1200+50 | 1400+50 | 2830+100 |
Specification of 3000-50000ml thermostat heating mantle
| Power supply | 220V 50HZ (110V 50/60HZ is available) | ||||
| Volume(ml) | 3000 | 5000 | 10000 | 20000 | 50000 |
| Power(W) | 730 | 1100 | 2100 | 3000 | 5000 |
| Temperature Control Accuracy | ±3℃ | ||||
| Heating Temperature | Highest surface temperature is 380℃ | ||||
| Boiling | 3000ml water 15-25min | 5000ml water 15-25min | 10000ml water 15-25min | 20000ml water 15-25min | 50000ml water 20-30min |
| Furnace Wire | Cr20Ni80 | ||||
| Insulating Layer | Alkali-free glass fiber,temperature resistance ability can reach to 450℃ | ||||
| Insulating Coefficient | Relative humidity ≤35% ≥500M | ||||
| Heat Insulation Layer | Keep warm by environmental protection material–aluminum silicate wool which has been vacuum case-hardened | ||||
| Upper Opening Diameter(mm) | 212 | 253 | 305 | 384 | 456 |
| Depth(mm) | 125 | 145 | 175 | 205 | 300 |
| Shell Diameter(mm) | 300 | 340 | 400 | 480 | 635 |
| Shell Height(mm) | 200 | 230 | 260 | 300 | 550 |
| Weight(g) | 2850+200 | 4400+400 | 6700+500 | 8200+200 | 28000+500 |
