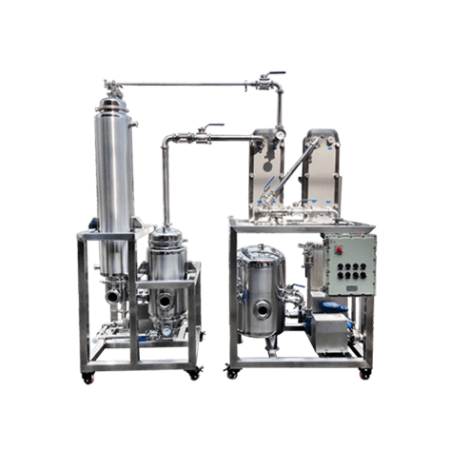

FFE-200/A Single-Effect Falling Film Evaporator

Contact us for a free quote


Product Introduction

Single-Effect Falling Film Evaporator
Single-Effect Falling Film Evaporator

①Tubular Heat Exchanger                                        ②Gas-Liquid Separation Chamber

③Plate Heat Exchanger                                            ④Liquid Storage Tank

⑤Discharge Pump for Concentration Liquid             ⑥Feed Pump

⑦Discharge Pump for Solvent                                  ⑧Water Circulating Vacuum Pump

Product Parameters

Model FFE-100L FFE-200L FFE-500L FFE-1000L
Evaporation Rate (L/hr) 100 200 500 1000
Evaporator Part Dimension (W*D*H cm) 95*85*250 110*90*260 120*100*300 140*120*300
Condenser Part Dimension (W*D*H cm) 120*85*250 130*90*250 130*100*250 130*120*250
Feeding Pump (kw) 0.37 0.37 0.37 0.75
Discharge Pump (Oil, kw) 0.75 0.75 0.75 0.75
Discharge Pump (Ethanol, kw) 0.75 0.75 0.75 0.75
Panel (kw) 50 50 50 50
Total Weight (kg) 1000 1300 1500 1800
Total Power (kw) 4 4 6.5 6.5
Electricity 240V, 3 Phase, 60Hz or Customizable

Product Details

1. The sight glass is used for observing the evaporation process.

sight glass
Sight glass

2. The anti-explosion control cabinet is safe without spark.

anti-explosion control cabinet
Anti-explosion control cabinet

3. Sanitary 304 stainless steel pipe fittings 9 is wonderful.

Sanitary 304 stainless steel pipe fittings
Sanitary 304 stainless steel pipe fittings

4. The elaborately made distributor and tubular heat exchanger are quite suitable for heating evenly.

tubular heat exchanger
Tubular heat exchanger

Quality Certification

packing and delivery
packing and delivery

Pre-Sale Service

  1. Provide 24-hour technical consultation and reply;
  2. Provide professional quotation information;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sale Service

  1. With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport of products are in strictaccordance with the export standard;
  6. Provide transportation schedule information to clients timely.

After-Sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
  7. Provide assistance in solving problems such as equipment damage in the transport.
