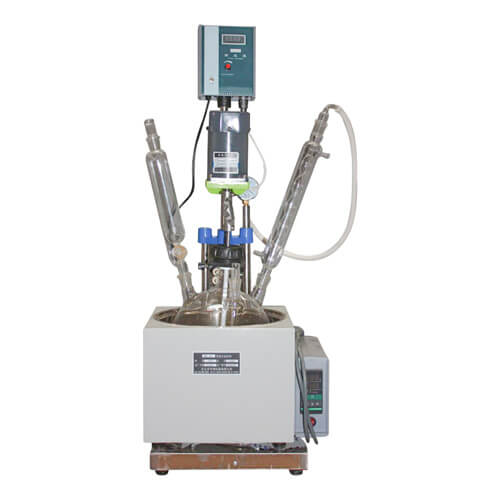

F-5L Single Layer Glass Reactor

Contact us for a free quote


Product Description

F-5L single layer glass reactor is a series product of single layer glass reactor, its reaction bottle volume is 5L, that’s why it is known as F-5L single layer glass reactor, also called: glass vacuum reactor, extractor, multifunctional reactors, it can make various of solvent synthesis reaction under the condition of constant temperature.

Product Details

Product Parameters

Basic parameter Model Single layer glass reactor
Volume of the reactor bottle 5L
Glass material GG-17
Main body Stainless steel
Number of covered bottle 5
Reaction temperature of the reactor -80-250℃
Degree of vacuum 0.098Mpa
Stirring speed 0-800pm
Stirring shaft diameter 8mm
Motor Power 90W
Heating power 2KW
Voltage/Hertz 220V/50Hz
Whole size 430*330*1200mm
Plate size 410*325mm
Pot gall size Stainless steel   280*170mm
Packing size 1000*480*480
Packing weight 30kg
Function device Speed regulation method Electronic variable speed
Rotating speed display mode Number display
Pot temperature display mode Number display
Sealing method PTFE material seal,¢50 Flange stirring port
Condenser Vertical 60*450mm 24#Standard port
Drop wise 500ml Constant pressure funnel 29#Standard port
Pressure reduce device 24# standard port pressure reduce valve
Temperature test tube 24#Standard port
Collecting device Two adapter headband with collection bottle
Vacuum display method Vacuum table
Stirring connection method Universal joints
Stir bar Described stainless steel rods, outsourcing PTFE
Optional device Explosion-proof Explosion-proof inverter/Explosion proof motors EX60W 0-1400rmp
Kettle temperature display Optional digital display
Discharge device PTFE discharge valve flange ¢ 60
Heating device electric heating jacket heating
Our laboratory equipment can be customized according to customers actual needs .
