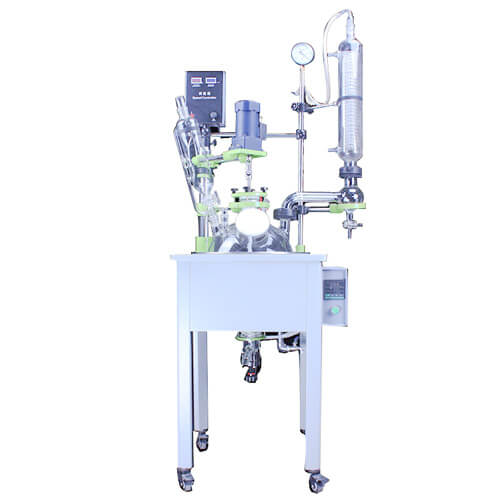

F-30L Single Layer Glass Reactor

Contact us for a free quote


Product Description

F-30L single layer glass reactor is a series product of single layer glass reactor. Its max volume is 30L, max rotating speed can reach to 450rpm, and reaction bottle volume is 30L, that’s why it is known as F-30L single layer glass.

Product Parameters

Basic parameter Model Single layer glass reactor
Volume of the reactor bottle 30L
Glass material GG-17
Spraying plastic anti-corrosion shell size(mm) 690*590*920
Stainless steel container size(mm) 500*280
Movement method Universal castor with brake
Reaction bottle number Spherical shape 7 pieces
Lifting of discharging port 450mm
Reaction temperature -80-250℃
Vacuum degree 0.098Mpa
Stirring speed 0-450rpm
Stirring shaft diameter 15mm
Stirring power 120W 1/3
Heating power 8KW
Overall dimension(mm) 750*590*2160
Packing dimension(mm) 1220*660*860
Package weight(KG) 80
Function device Electrical machine Low speed reinforcement electric machine, speed rate 3:1
Rotating speed display mode Liquid crystal digital display
Pot temperature display mode Digital display
PTFE sealing ¢70 Flange stirring port
Condenser 120*600mm
Backflow(distillation) device Backflow elbow with discharging switch, 50# ground port
Drop device 2L/34 standard port
Pressure reduce device 34# standard port pressure reduce valve
Temperature measuring tube 24# standard port
Solid discharge(washing) port ¢120 flange port with PTFE cover
Discharging method Inclined discharging glass valve, ¢80 flange port
Vacuum display method Vacuum meter
Stirring connection method Universal joint connection
Stirring rod Anchor type stainless steel rod, covered with PTFE
Optional device Shell 304 stainless steel
Collecting device Collection bottle
Cooling circulating device Cooling cooper coil tube
Explosion-proof Explosion-proof inverter/Explosion proof motors 180W/370W  0-1400rmp
Main body Spraying PTFE of whole instrument
Heating device electric heating jacket heating

Packing List

No. Name Quantity
1 Constant temperature water bath 1 unit
2 Stirring Electrical Machine 1 unit
3 Speed Controller 1 pc
4 Stirring Plug 1 set
5 Stirring Rod 1 pc
6 Bottleneck clamp 2 sets
7 Tray bottle ring 1 pc
8 Condenser clamp 1 pc
9 Lock nut 1 set
10 Discharging valve 1 set
11 Six-Port Glass Reaction Bottle 1 pc
12 Backflow valve 1 pc
13 Condenser 1 pc
14 Air exhaust mouth 1 pc
15 24# charging switch 1 pc
16 Thermowell 1 pc
17 PTFE cover of washing port 1 pc
