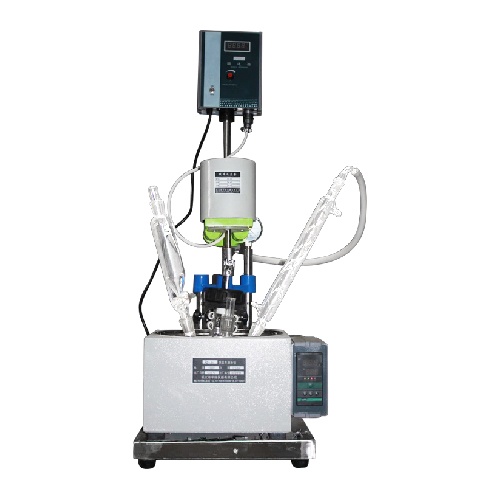

F-1L Single Layer Glass Reactor

Contact us for a free quote

Description

Product Description

F-1L single-layer glass reactor’s reaction flask volume is 1L, interlayer volume is 0.4L, stirring diameter of axle is 8mm, and the power of stirring is 40W.
F-1L Single Layer Glass Reactor
F-1L Single Layer Glass Reactor

Product Details

Product Parameters

Basic Parameter Type S212-1L
Glass material GG-17
Main support Stainless Steel
Reaction bottle volume 1L
Interlayer volume 0.4L
Oil in and out circulation port Enter from low port, come out from high port
Number of reactor bottle 5
Discharge outlet liftoff height 30mm
Reactor reaction temperature -80-250 degree
Vacuum degree 0.098Mpa
Stirring speed 0-800rpm
Stirring diameter of axis 8mm
Stirring power 40W
Voltage/Frequency (V/Hz) 220V/50Hz
Boundary dimension (mm*mm*mm) 350*345*1000
Baseboard Dimension (mm*mm*mm) 325*345
Package Dimension (mm*mm*mm) 1200*480*400   0.23m³
Package weight (KG) 32
Functional Configurations Speed adjustment mode Electric stepless speed regulation
Rotate speed display mode Digital display
Sealing mode PTFE sealing, ¢50 flange stirring mouth
Condenser Vertical 40*400mm, 24# standard mouth
Dropwise adding device 250ml constant voltage funnel, 24# standard mouth
Depression device 24# standard mouth reducing valve
Temperature testing tube 19# standard mouth
Discharging method Inclined PTFE discharging valve, ¢60 flange mouth
Vacuum display mode Vacuum meter
Stirring connecting method Universal joint connecting
Stirring bar Anchor type and push type stainless steel bar, covered with PTFE
Optional Configurations Collecting device Can select backflow bend with collection bottle
Anti-Explosion Anti-explosive frequency changer, anti-explosive electric machine EX40W  0-1400 rotate
Main frame part Frame type, spraying plastics or PTFE
Heat insulation device Cotton insulation
Reactor temperature control Can select digital display
Our company’s laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.
