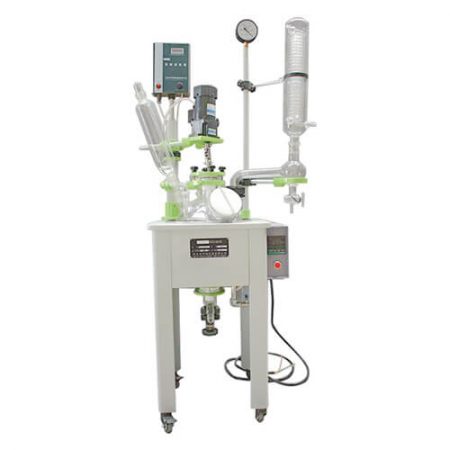

F-10L Single Layer Glass Reactor
F-10L single layer glass reactor is a series product of single layer glass reactor, its max volume is 10L, max rotating speed can reach to 450rpm, its reaction bottle volume is 10L, that’s why it is known as F-10L single layer glass reactor, also called: glass vacuum reactor, extractor, multifunctional reactors, it can make various of solvent synthesis reaction under the condition of constant temperature.
Description
Facebook
Youtube
Instagram
Quotation
Technical Parameters
| Basic parameter | Model | Single layer glass reactor |
| Volume of the reactor bottle | 10L | |
| Glass material | GG-17 | |
| Spraying plastic anti-corrosion shell size(mm) | 540*440*860 | |
| Stainless steel container size(mm) | 350*220 | |
| Movement method | Universal castor with brake | |
| Reaction bottle number | Spherical shape 7 pieces | |
| Lifting of discharging port | 450mm | |
| Reaction temperature | -80-250℃ | |
| Vacuum degree | 0.098Mpa | |
| Stirring speed | 0-450rpm | |
| Stirring shaft diameter | 15mm | |
| Stirring power | 90W 1/3 | |
| Heating power | 3KW | |
| Overall dimension(mm) | 600*400*1900 | |
| Packing dimension(mm) | 1100*620*790 | |
| Package weight(KG) | 63 | |
| Function device | Electrical machine | Low speed reinforcement electric machine, speed rate 3: 1 |
| Rotating speed display mode | Liquid crystal digital display | |
| Pot temperature display mode | Digital display | |
| PTFE sealing | ¢70 Flange stirring port | |
| Condenser | 100*600mm | |
| Backflow(distillation) device | Backflow elbow with discharging switch, 50# ground port | |
| Drop device | 1L/34 standard port | |
| Pressure reduce device | 34# standard port pressure reduce valve | |
| Temperature measuring tube | 24# standard port | |
| Solid discharge(washing) port | ¢120 flange port with PTFE cover | |
| Discharging method | Inclined discharging glass valve, ¢80 flange port | |
| Vacuum display method | Vacuum meter | |
| Stirring connection method | Universal joint connection | |
| Stirring rod | Anchor type stainless steel rod, covered with PTFE | |
| Optional device | Shell | 304 stainless steel |
| Collecting device | Collection bottle | |
| Cooling circulating device | Cooling cooper coil tube | |
| Explosion-proof | Explosion-proof inverter/Explosion proof motors 180W/370W 0-1400rmp | |
| Main body | Spraying PTFE of whole instrument | |
| Heating device | electric heating jacket heating |
Packing List of Innovative Products for Import Pyrex Flow Reactor for Fine Chemical
| No. | Name | Quantity |
| 1 | Constant temperature water bath | 1 unit |
| 2 | Stirring Electrical Machine | 1 unit |
| 3 | Speed Controller | 1 pc |
| 4 | Stirring Plug | 1 set |
| 5 | Stirring Rod | 1 pc |
| 6 | Bottleneck clamp | 2 sets |
| 7 | Tray bottle ring | 1 pc |
| 8 | Condenser clamp | 1 pc |
| 9 | Lock nut | 1 set |
| 10 | Discharging valve | 1 set |
| 11 | Six-Port Glass Reaction Bottle | 1 pc |
| 12 | Backflow valve | 1 pc |
| 13 | Condenser | 1 pc |
| 14 | Air exhaust mouth | 1 pc |
| 15 | 24# charging switch | 1 pc |
| 16 | Thermowell | 1 pc |
| 17 | PTFE cover of washing port | 1 pc |
Transport
Additional information
| Brand | lanphan |
|---|---|
| Weight | 63KG |
| Volume of the reactor bottle | 10L |
| Lifting of discharging port | 450mm |
