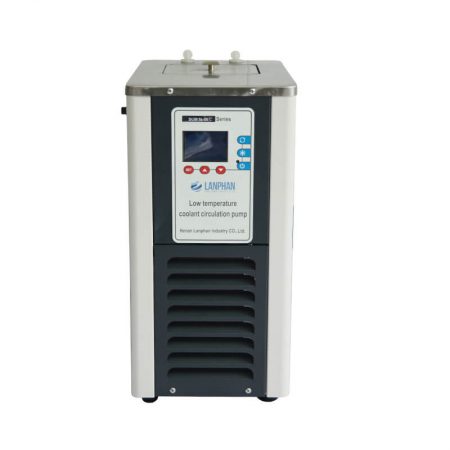

DLSB 5L-10 Chiller



[title style=”center” text=”DLSB 5L-10 Chiller” color=”rgba(32, 163, 219, 0.81)”]

Product Description

Chiller also known as low temperature cooling water circulation pump, cryogenic pump, low temperature circulation pump, low temperature cooling circulation pump,etc. It is a low-temperature equipment that uses a compressor for mechanical refrigeration. The tank has a volume of 5L. The lowest temperature at no load can meet -23°C~-120°C, and the temperature can be adjusted from -10°C to -120°C. On the basis of refrigeration, a circulating water pump is added to enable the cooled liquid to pass through the pipeline for external circulation and internal circulation, and can provide low temperature for external equipment such as double-layer glass reactor, organic synthesis device, rotary evaporator, etc. The liquid can also be combined with a rotary evaporator, a vacuum freeze drying oven, a circulating water vacuum pump, a magnetic stirrer and the like to perform chemical reaction operations and drug storage at a multi-functional low temperature.

Product Advantages

1. Imported air-cooled fully enclosed compressor unit with advanced performance and reliable quality; 2. Refrigerant unit special relays, protectors, capacitors, refrigeration components, imported high quality components; 3. Digital display thermostat display, microcomputer temperature control, simple and eye-catching operation; 4. Large cooling capacity and fast cooling speed greatly improve work efficiency; 5. It can effectively protect the normal use of all kinds of precision equipment and instruments under the conditions of lack of water source,water quality, water pressure, poor water temperature and high temperature working conditions; 6. The circulation system is made of stainless steel and has the functions of anti-corrosion, anti-rust and anti-cold liquid pollution; 7. At low temperature, the coolant can be delivered to the place where it is used, and the original circulating pump of international famous factory is installed inside; 8. The microcomputer intelligent control refrigeration system is automatically turned on, and the refrigeration system has multiple protection devices such as delay, overheat and over current.

Product Parameters

Product NameChiller
Product ModelDLSB 5L-10℃
Reservoir Volume(L)5
No-load Minimum Temperature (℃)-10
Circulating Pump Power (W)100
Circulating Pump Flow (L/MIN)20
Circulating Pump Head (M)6
External Circulation Interface (mm)8
Dimension (mm)400x250x515
Net Weight (kg)24
Gross Weight (kg)32

Product Details

Digital read out of temperature and microprocessor controller for temperature, which is simple and easier to see.
Circulation system adopts anticorrosion materials, which has the function of antirust and anticorrosion, cryogenic liquid pollution prevention.

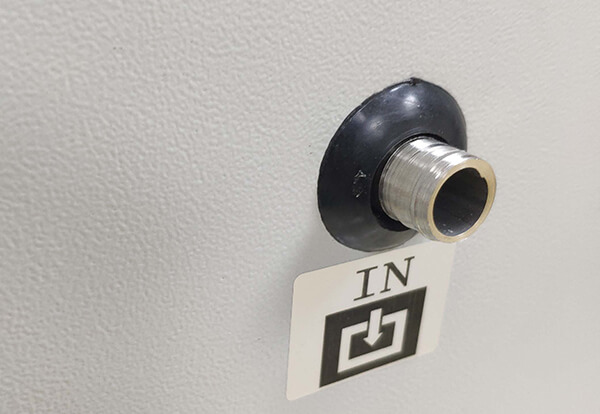

Circulation system
Circulation system
It can be matched with a variety of instruments (rotary evaporators, fermentation tanks, chemical reactors, freeze-drying equipments, pharmaceutical reactors, etc.)
Closed type storage tank reduces refrigerant volatilization and saves material.

Matching Products

Rotary evaporator
Rotary evaporator
Short-path distillation
Short-path distillation

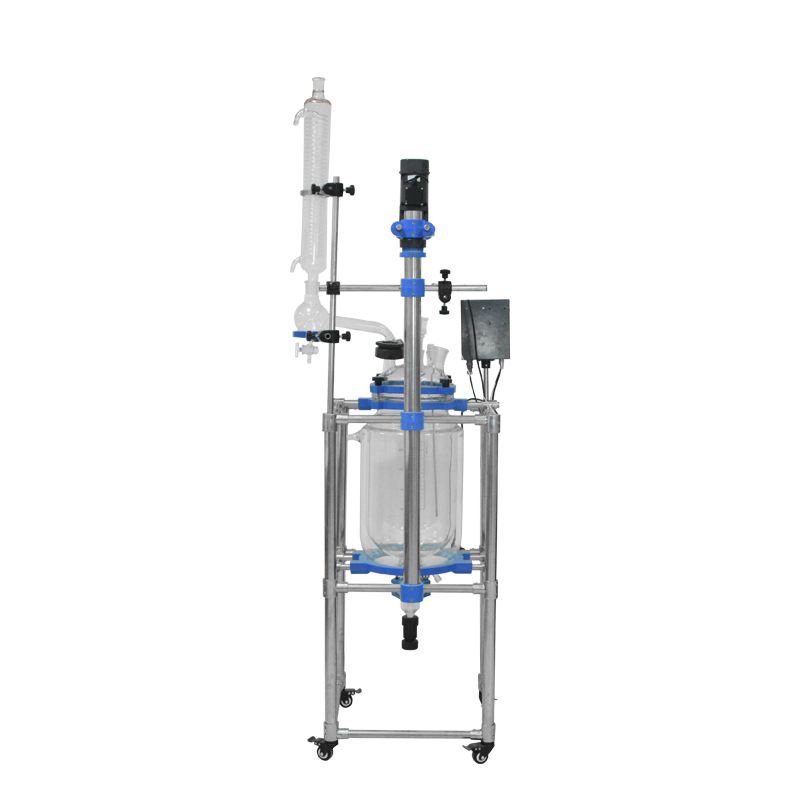

Glass Reactor
Glass Reactor

[title style=”center” text=”Quality Certifications” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

[title style=”center” text=”Package & Delivery” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]
packing and delivery
packing and delivery
[title style=”center” text=”Our Service” tag_name=”h2″ color=”rgba(32, 163, 219, 0.81)”]

Pre-Sale Service

  1. Provide 24-hour technical consultation and reply;
  2. Provide professional quotation information;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sale Service

  1. With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport of products are in strictaccordance with the export standard;
  6. Provide transportation schedule information to clients timely.

After-Sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
  7. Provide assistance in solving problems such as equipment damage in the transport.
