The Main Components of a Rotary Evaporator

Rotary evaporators are widely used in the laboratory. In addition, as an ideal equipment, it plays an important role in many fields, such as chemical industry, medicine, pharmacy, food industry and biology. A rotary evaporator is controlled by current to make the flask rotate at a constant speed. Inside the flask frame, a motor can be used for lifting and lowering. When the power is cut off, the flask can be lifted or lowered automatically on the heating pot. In this article, I will make further introduction, mainly focusing on the main components of a rotary evaporator.

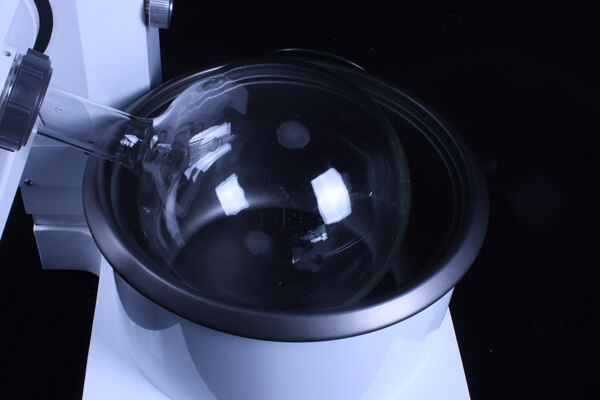

The main components of the rotary evaporator
The main components of the rotary evaporator

However, there are many factors that affect the rotary evaporator. The first one is the temperature of the water bath. The second one is the vacuum degree of the rotary evaporator. The third one is the efficiency of the condensing cycle unit. The fourth one is the rotary speed of the sample .

Main Parts of a Rotary Evaporator

1. Rotary motor

The rotary motor can drive the sample bottle by the rotation of the motor.

2. Evaporating tube

The evaporator tube has two functions. The first one is the evaporator tube’s role in the sample’s rotation. The other function of the evaporator is to enable the vacuum system to suck out samples.

3. Vacuum system

The vacuum system can be used to reduce the pressure of the rotary evaporation system.

4. Fluid heating pot

Under normal conditions, the fluid is heated in a wok with water to heat the sample.

5. Condenser pipe

Condenser pipes are usually double – coiled or other condensing systems, such as dry ice, acetone condensing samples, etc.

6. Receiving flask

The sample may be condensed and recycled into a receiving flask.

These above are the main parts of a rotary evaporator.

Henan lanphan industry co., ltd. has been committed to the production of rotary evaporators for many years, and enjoys a good fame in the market. If you are interested in purchasing rotary evaporators, please contact us as soon as possible. We will provide you with quality service and quality products. For further information on the main components of the rotary evaporator, please contact [email protected]
